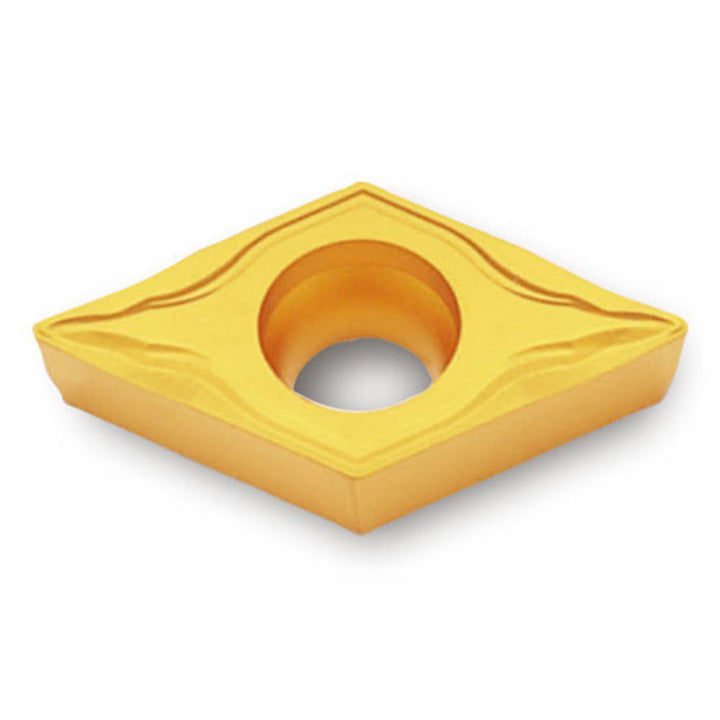

DCMT11T304FG TT5100 Solid Carbide Insert, Grade TT5100, TiCN - Ingersoll Cutting Tools 5515100

MFR# 5515100ISO/ANSI# DCMT11T304FG TT5100Series DCMT

$19.16List $24.15 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT5100
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5515100 is a DCMT11T304FG TT5100 solid carbide indexable insert, grade TT5100, TiCN coated. Suited for steel.

Specifications

Ansi codeDCMT32.51FGTT5100
Chip breakerFG
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1730
Included angle55.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4570
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304FG TT5100
Manufacturer gradeTT5100
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsISO
Tolerance codeM
Wiper edgeNo
