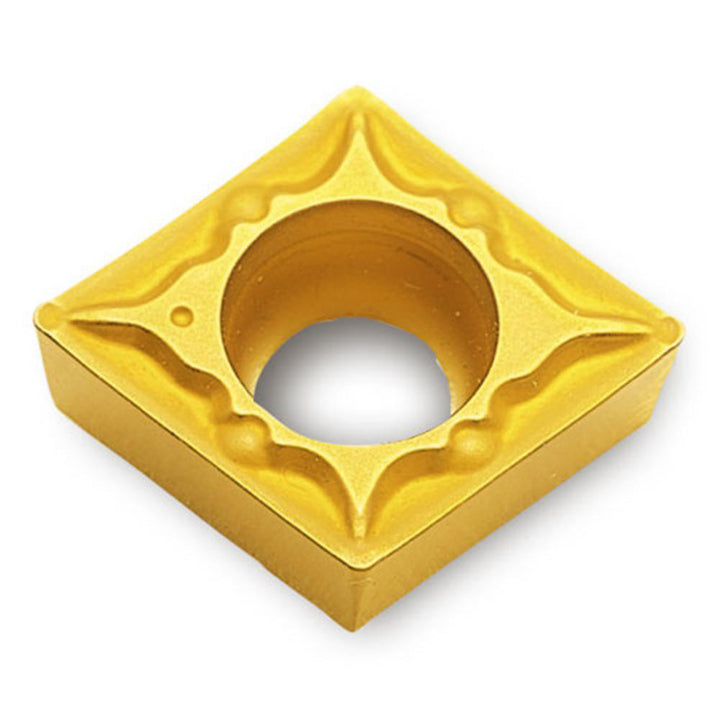

CCMT060204FG TT5100 Carbide Insert, Grade TT5100, Al2O3 - Ingersoll Cutting Tools 5515247

Ingersoll Cutting Tools

CCMT060204FG TT5100 Carbide Insert, Grade TT5100, Al2O3 - Ingersoll Cutting Tools 5515247

MFR# 5515247ISO/ANSI# CCMT060204FG TT5100Series CCMT

$13.29List $16.75 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTT5100
MaterialCarbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 5515247 is a CCMT060204FG TT5100 carbide indexable insert, grade TT5100, Al2O3 coated. Suited for steel.

Specifications

Chip breakerFG
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204FG TT5100
Manufacturer gradeTT5100
Maximum depth of cut0.0600
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsISO
Tolerance codeM
Wiper edgeNo
