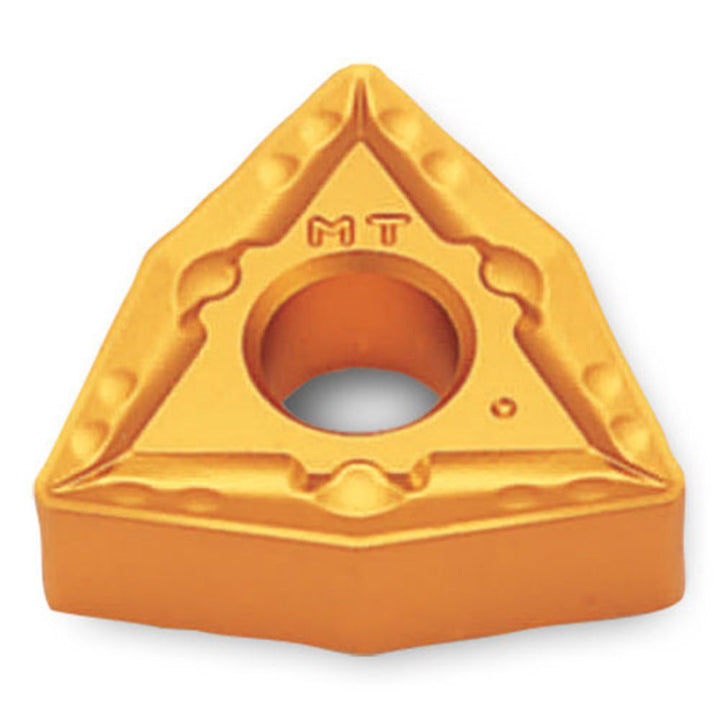

WNMG080408MT TT8020 Solid Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 5515254

Ingersoll Cutting Tools

WNMG080408MT TT8020 Solid Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 5515254

MFR# 5515254ISO/ANSI# WNMG080408MT TT8020Series WNMG

$17.12List $21.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTT8020
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5515254 is a WNMG080408MT TT8020 solid carbide indexable insert, grade TT8020, TiCN coated. Suited for stainless steel, steel, super-alloys & titanium.

Specifications

Ansi codeWNMG432MTTT8020
Chip breakerMT
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408MT TT8020
Manufacturer gradeTT8020
Material gradeC1; C2; C3; C4; C5; C6
Maximum depth of cut0.1570
Number of cutting edges6
Primary workpiece materialStainless Steel; Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
StandardsISO
Tolerance codeM
Wiper edgeNo
