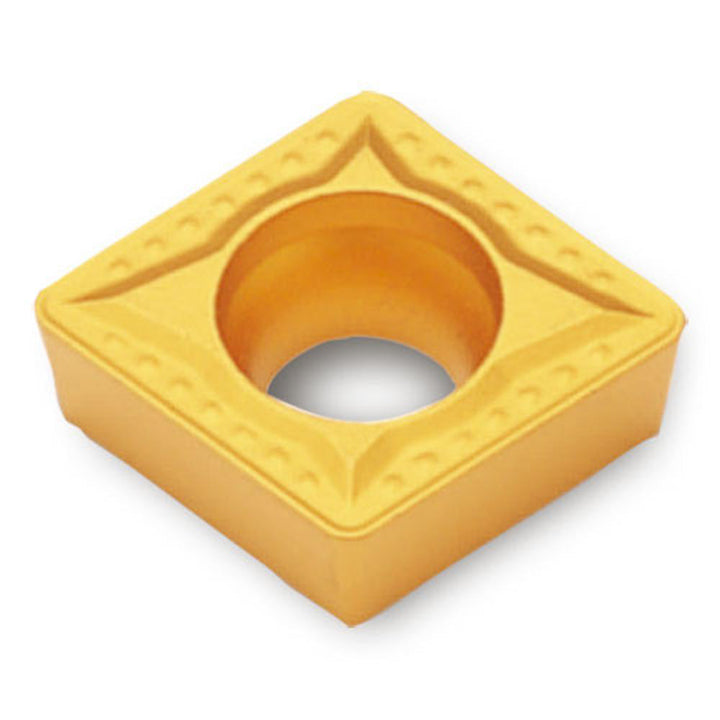

CCMT060204MT TT8020 Solid Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 5515703

Ingersoll Cutting Tools

CCMT060204MT TT8020 Solid Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 5515703

MFR# 5515703ISO/ANSI# CCMT060204MT TT8020Series CCMT

$13.29List $16.75 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTT8020
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5515703 is a CCMT060204MT TT8020 solid carbide indexable insert, grade TT8020, TiCN coated. Suited for stainless steel, steel, super-alloys & titanium.

Specifications

Ansi codeCCMT21.51MTTT8020
Chip breakerMT
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204MT TT8020
Manufacturer gradeTT8020
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialStainless Steel; Steel; Super-alloys & Titanium
RakePositive
Relief angle7
StandardsISO
Tolerance codeM
Wiper edgeNo
