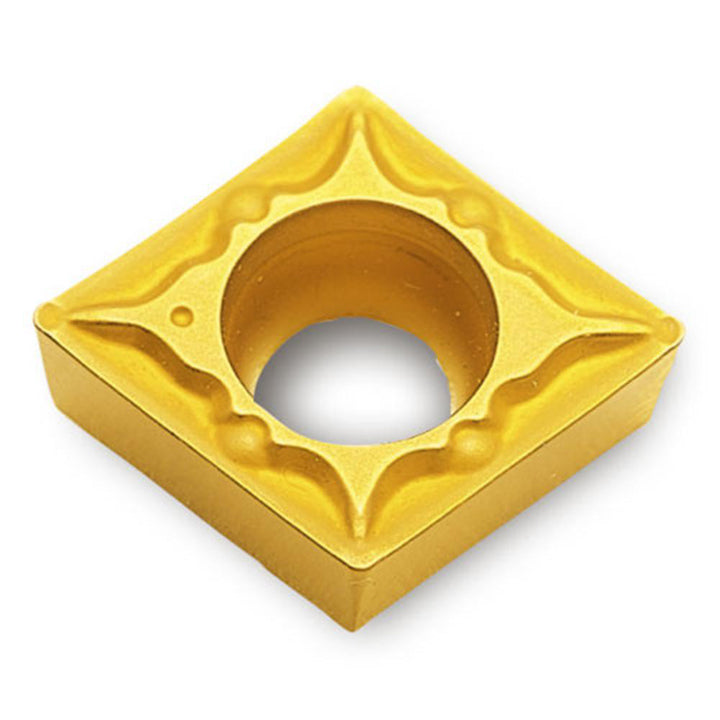

CCMT09T304FG PV3010 Cermet Insert, Grade PV3010, TiN - Ingersoll Cutting Tools 5516155

Ingersoll Cutting Tools

CCMT09T304FG PV3010 Cermet Insert, Grade PV3010, TiN - Ingersoll Cutting Tools 5516155

MFR# 5516155ISO/ANSI# CCMT09T304FG PV3010Series CCMT

$16.03List $20.20 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradePV3010
MaterialCermet
CoatingTiN

Description

The Ingersoll Cutting Tools 5516155 is a CCMT09T304FG PV3010 cermet indexable insert, grade PV3010, TiN coated. Suited for cast iron, stainless steel, steel.

Specifications

Ansi codeCCMT32.51FGPV3010
Chip breakerFG
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCermet
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304FG PV3010
Manufacturer gradePV3010
Maximum depth of cut0.0590
Number of cutting edges2
Primary workpiece materialCast Iron; Stainless Steel; Steel
RakePositive
Relief angle7
StandardsISO
Tolerance codeM
Wiper edgeNo
