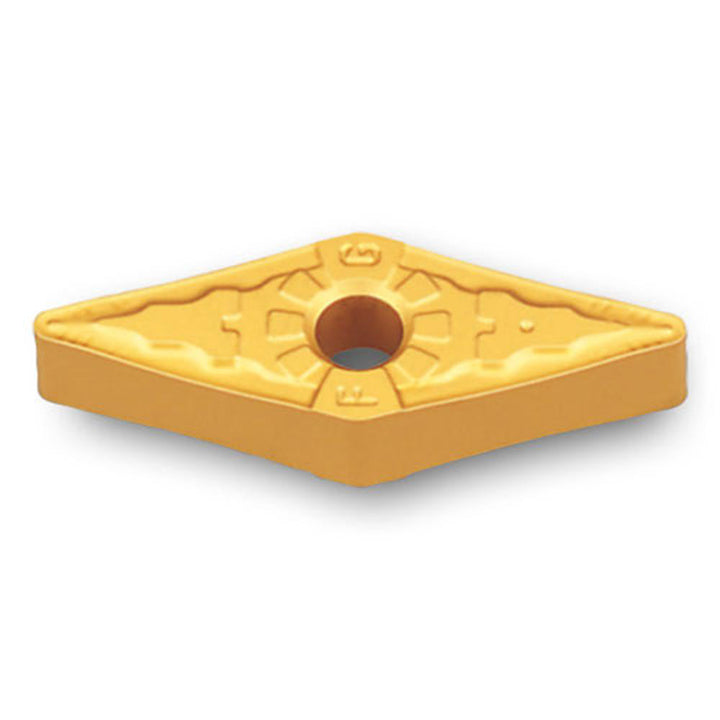

VNMG160408FG PV3010 Cermet Insert, Grade PV3010, TiN - Ingersoll Cutting Tools 5516167
MFR# 5516167ISO/ANSI# VNMG160408Series VNMG
$25.97List $33.30
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradePV3010
MaterialCermet
CoatingTiN
Description
The Ingersoll Cutting Tools 5516167 is a VNMG160408FG PV3010 cermet indexable insert, grade PV3010, TiN coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeVNMG332
Ansi size code332
Chip breakerFG
Chip breaker operationFinishing
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius0.0310
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6540
Insert materialCermet
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness0.1870
Iso codeVNMG160408FG PV3010
Iso insert codeVNMG160408
Iso size code160408
Manufacturer gradePV3010
Maximum depth of cut0.0790
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
