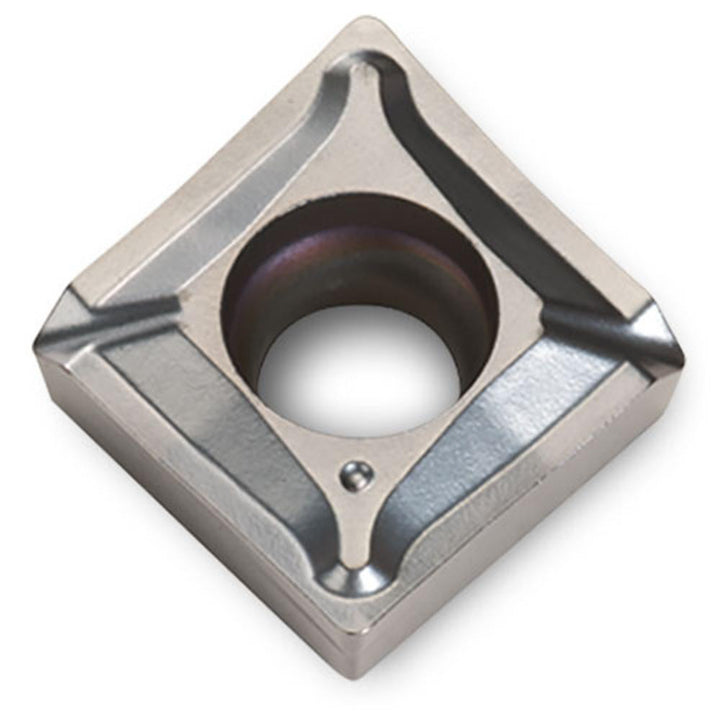

XCMT050204TC TT8020 Solid Carbide Insert, Grade TT8020, Coated - Ingersoll Cutting Tools 5516496

Ingersoll Cutting Tools

XCMT050204TC TT8020 Solid Carbide Insert, Grade TT8020, Coated - Ingersoll Cutting Tools 5516496

MFR# 5516496ISO/ANSI# XCMT050204TC TT8020Series XCMT

$21.87List $26.60 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTT8020
MaterialSolid Carbide
CoatingCoated

Description

The Ingersoll Cutting Tools 5516496 is a XCMT050204TC TT8020 solid carbide indexable insert, grade TT8020, Coated coated. Suited for steel, stainless steel, super-alloys & titanium.

Specifications

ChipbreakerTC
Coating finishCoated
Coating processPVD
Corner radius0.0160
Cutting directionNeutral
Included angle degree83.50
Inscribed circle0.2200
Insert materialSolid Carbide
Insert size code050204
Insert styleXCMT
Iso codeXCMT050204TC TT8020
Length0.2200
Manufacturer gradeTT8020
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium
RakePositive
Relief angle7
ShapeDiamond
Thickness0.0830
Width0.2200
