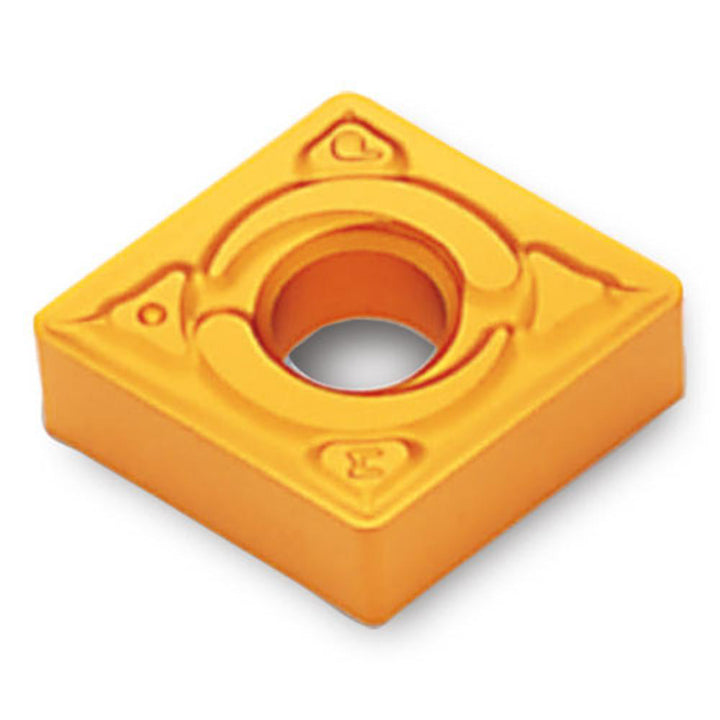

CNMG120412MP TT8020 Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 5516561

Ingersoll Cutting Tools

CNMG120412MP TT8020 Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 5516561

MFR# 5516561ISO/ANSI# CNMG120412MP TT8020Series CNMG

$15.67List $20.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT8020
MaterialCarbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5516561 is a CNMG120412MP TT8020 carbide indexable insert, grade TT8020, TiCN coated. Suited for steel, stainless steel, superalloy, titanium.

Specifications

Chip breakerMP
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius0.0470
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120412MP TT8020
Manufacturer gradeTT8020
Maximum depth of cut0.1570
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
