Ingersoll Cutting Tools

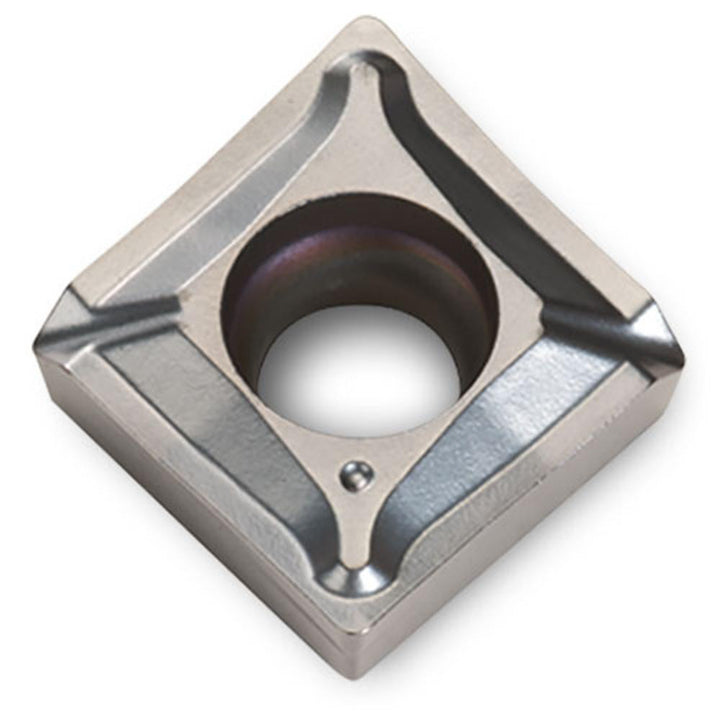

XCMT080304TC 779030 Carbide Insert, Grade TT9030, TiAlN - Ingersoll Cutting Tools 5516724
MFR# 5516724ISO/ANSI# XCMT080304TC 779030Series XCMT
$21.87List $26.60
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTT9030
MaterialCarbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5516724 is a XCMT080304TC 779030 carbide indexable insert, grade TT9030, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
ChipbreakerTC
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Included angle degree83.5
Inscribed circle0.3310
Insert materialCarbide
Insert size code080304
Insert styleXCMT
Iso codeXCMT080304TC 779030
Length0.331
Manufacturer gradeTT9030
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
ShapeDiamond
Thickness0.125
Width0.331
