Ingersoll Cutting Tools

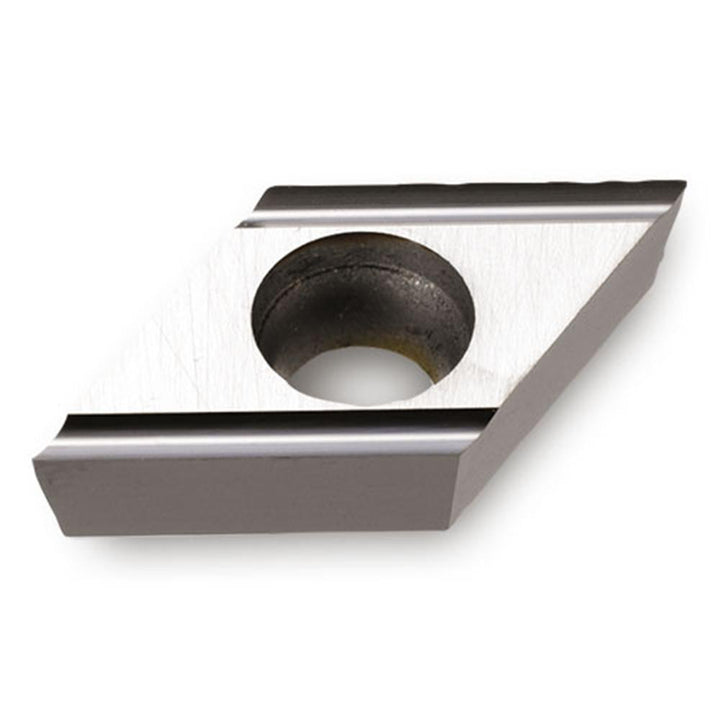

DCET070202R-GF TT9020 Solid Carbide Insert, Grade TT9020, TiCN - Ingersoll Cutting Tools 5517340
MFR# 5517340ISO/ANSI# DCET070202R-GF TT9020Series DCET
$24.55List $31.50
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTT9020
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5517340 is a DCET070202R-GF TT9020 solid carbide indexable insert, grade TT9020, TiCN coated. Suited for steel, stainless steel.
Specifications
Ansi codeDCET21.50.5RGFTT9020
Chip breakerGF
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0080
Hole diameter0.1100
Included angle55.0
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.3030
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.50.5
Insert styleDCET
Insert thickness0.0940
Iso codeDCET070202R-GF TT9020
Manufacturer gradeTT9020
Maximum depth of cut0.0600
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
Tolerance codeE
Width in1/4
Wiper edgeNo
