DCET11T302R-GF TT9020 Solid Carbide Insert, Grade TT9020, TiCN - Ingersoll Cutting Tools 5517346

Ingersoll Cutting Tools

DCET11T302R-GF TT9020 Solid Carbide Insert, Grade TT9020, TiCN - Ingersoll Cutting Tools 5517346

MFR# 5517346ISO/ANSI# DCET11T302R-GF TT9020Series DCET

$27.45List $34.60 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT9020
MaterialSolid Carbide
CoatingTiCN

Description

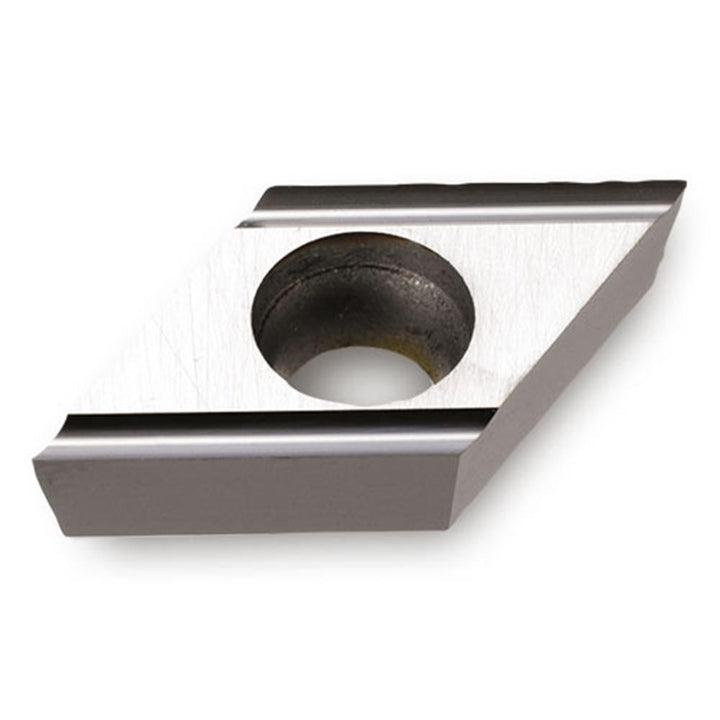

The Ingersoll Cutting Tools 5517346 is a DCET11T302R-GF TT9020 solid carbide indexable insert, grade TT9020, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi codeDCET32.50.5RGFTT9020
Chip breakerGF
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0080
Hole diameter0.1730
Included angle55.0
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.50.5
Insert styleDCET
Insert thickness in5/32
Iso codeDCET11T302R-GF TT9020
Manufacturer gradeTT9020
Maximum depth of cut0.1000
Number of cutting edges2
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO
Tolerance codeE
Wiper edgeNo
