Ingersoll Cutting Tools

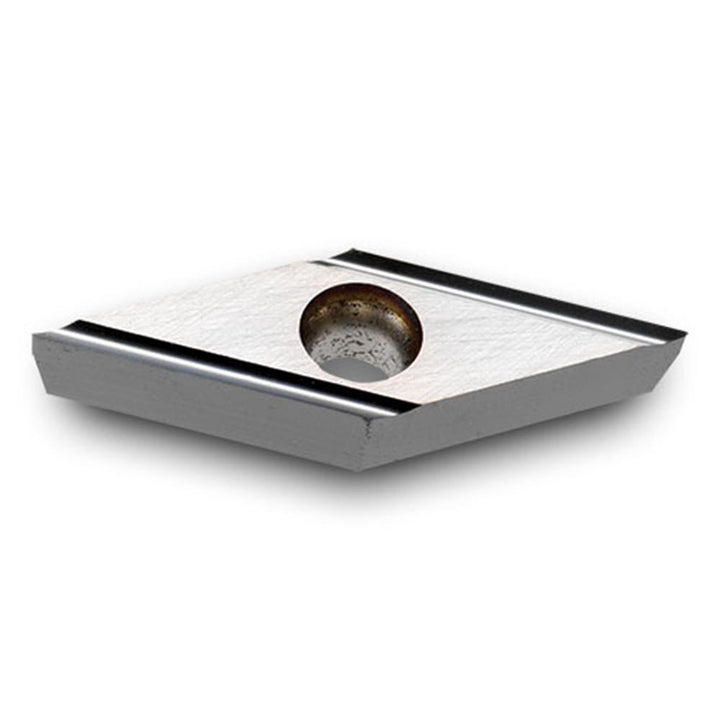

VBET110302R-GF TT9020 Carbide Insert, Grade TT9020, TiCN - Ingersoll Cutting Tools 5517358
MFR# 5517358ISO/ANSI# VBET110302Series VBET
$30.32List $38.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeTT9020
MaterialCarbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5517358 is a VBET110302R-GF TT9020 carbide indexable insert, grade TT9020, TiCN coated. Suited for stainless steel, steel.
Specifications
Ansi insert codeVBET220.5
Ansi size code220.5
Chip breakerGF
Chip breaker operationRoughing; Medium Machining
Clearance codeB
Coating finishTiCN
Coating processPVD
Corner radius0.0080
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1100
Included angle35
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.4370
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code220.5
Insert styleVBET
Insert thickness in1/8
Iso codeVBET110302R-GF TT9020
Iso insert codeVBET110302
Iso size code110302
Manufacturer gradeTT9020
Maximum depth of cut0.0600
Number of cutting edges2
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle5
Side clearancePositive
Tolerance codeE
Wiper edgeNo
