Ingersoll Cutting Tools

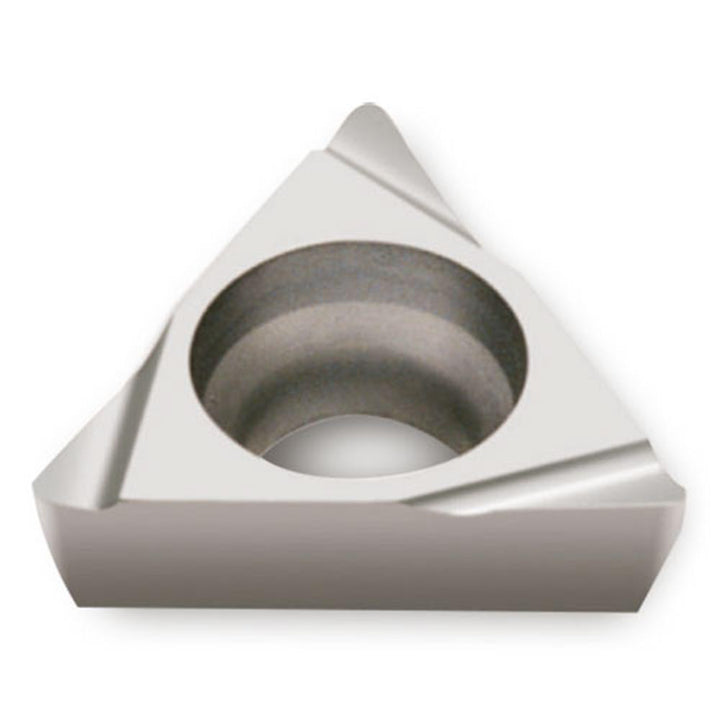

TPGX090202L PV3010 Carbide Insert, TiCN - Ingersoll Cutting Tools 5517931
MFR# 5517931ISO/ANSI# TPGX090202L PV3010Series TPGX
$20.67List $26.50
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
MaterialCarbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5517931 is a TPGX090202L PV3010 carbide indexable insert, TiCN coated. Suited for cast iron, stainless steel, steel.
Specifications
Chip breakerL
Clearance codeP
Coating finishTiCN
Coating processPVD
Corner radius0.0080
Hole diameter0.1180
Included angle60
Inscribed circle0.2190
Insert handLeft Hand
Insert holding methodScrew
Insert length0.3790
Insert materialCarbide
Insert shapeTriangle
Insert size code730.5
Insert styleTPGX
Insert thickness0.0940
Iso codeTPGX090202L PV3010
Manufacturers catalog number5517931
Maximum depth of cut0.0790
Multi use applicationTurning
Number of cutting edges3
Primary workpiece materialCast Iron; Stainless Steel; Steel
RakePositive
Relief angle11
Tolerance codeG
Wiper edgeNo
