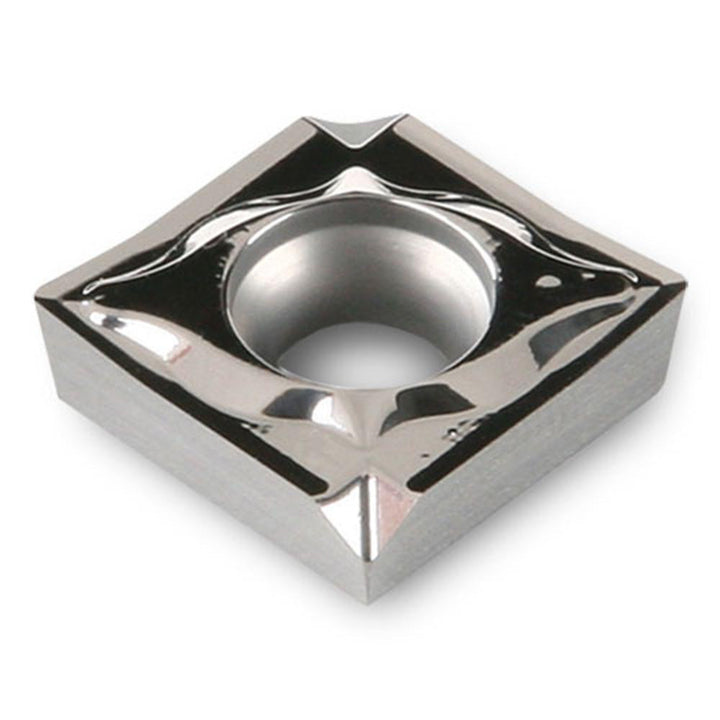

XCGT050204TA Solid Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5518805

Ingersoll Cutting Tools

XCGT050204TA Solid Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5518805

MFR# 5518805ISO/ANSI# XCGT050204TASeries XCGT

$25.12List $30.55 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeK10
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 5518805 is a XCGT050204TA solid carbide indexable insert, grade K10. Suited for cast iron.

Specifications

Ansi codeXCGT050204TA K10
Chip breakerNone
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityTCAP
Cutting edge effective length0.2250
Cutting edge styleCorner Rounded
Included angle degree86
Inscribed circle0.2250
Inscribed circle range0.2000 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size05
Insert size code050204
Insert styleXCGT
Iso codeXCGT050204TA
Length0.2250
Length range0.0000 to 0.3200
Manufacturers catalog number5518805
Manufacturer gradeK10
Material applicationCast Iron
Material gradeC3
Multi use toolNo
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.0830
Thickness range0.0000 to 0.1000
Width0.2250
