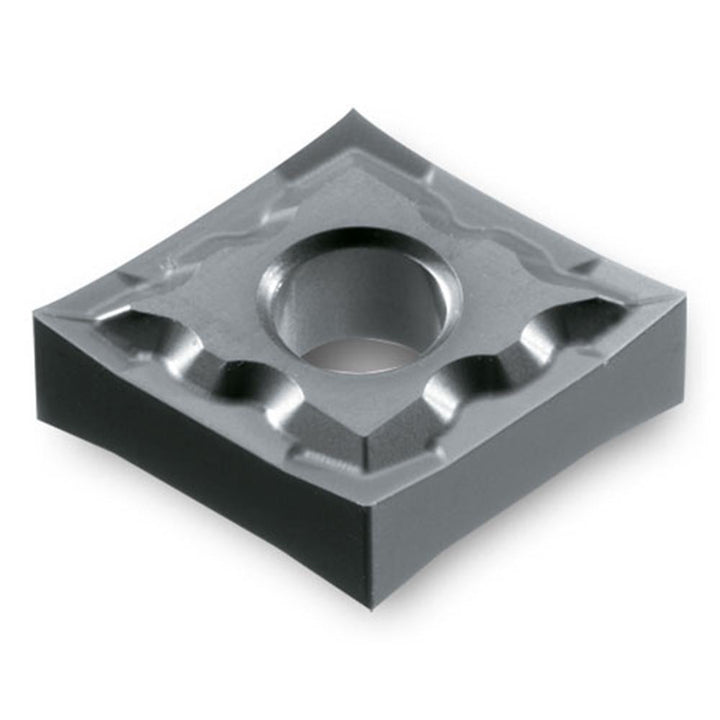

CNGG120401ML K10 Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5519350

Ingersoll Cutting Tools

CNGG120401ML K10 Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5519350

MFR# 5519350ISO/ANSI# CNGG120401ML K10Series CNGG

$18.45List $23.25 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeK10
MaterialCarbide

Description

The Ingersoll Cutting Tools 5519350 is a CNGG120401ML K10 carbide indexable insert, grade K10. Suited for cast iron, superalloy, titanium, non-ferrous metal.

Specifications

Chip breakerML
Clearance codeN
Coating processUncoated
Corner radius0.0040
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code430
Insert styleCNGG
Insert thickness0.1870
Iso codeCNGG120401ML K10
Manufacturer gradeK10
Maximum depth of cut0.0390
Number of cutting edges4
Primary workpiece materialCast Iron; Superalloy; Titanium; Non-Ferrous Metal
RakeNegative
Relief angle0
Tolerance codeG
Width in1/2
Wiper edgeNo
