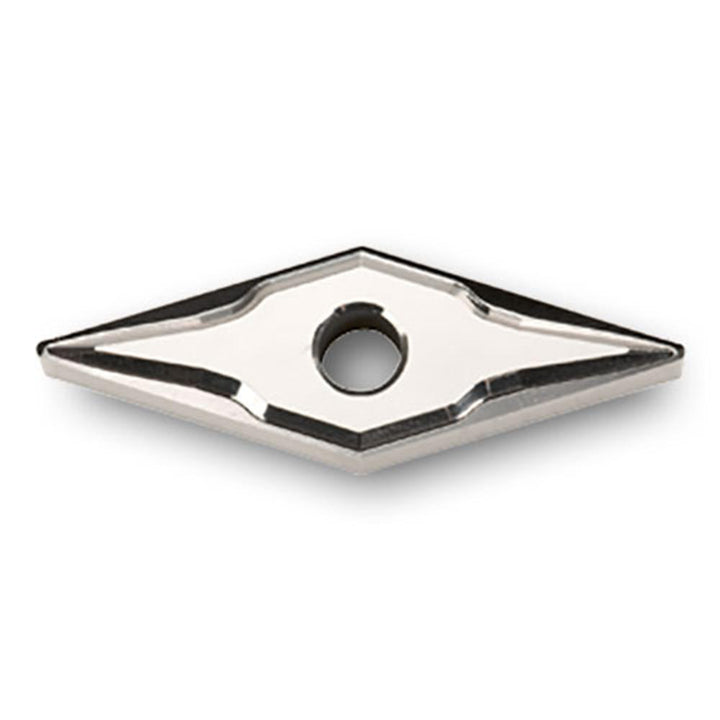

VNGG160401ML K10 Solid Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5519356

Ingersoll Cutting Tools

VNGG160401ML K10 Solid Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5519356

MFR# 5519356ISO/ANSI# VNGG160401ML K10Series VNGG

$24.28List $31.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeK10
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 5519356 is a VNGG160401ML K10 solid carbide indexable insert, grade K10. Suited for cast iron, super-alloys & titanium, non-ferrous metal.

Specifications

Ansi codeVNGG330MLK10
Chip breakerML
Clearance codeN
Coating processUncoated
Corner radius0.0040
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code330
Insert styleVNGG
Insert thickness0.1870
Iso codeVNGG160401ML K10
Manufacturer gradeK10
Maximum depth of cut0.0390
Number of cutting edges4
Primary workpiece materialCast Iron; Super-alloys & Titanium; Non-Ferrous Metal
RakeNegative
Relief angle0
Tolerance codeG
Width in3/8
Wiper edgeNo
