Ingersoll Cutting Tools

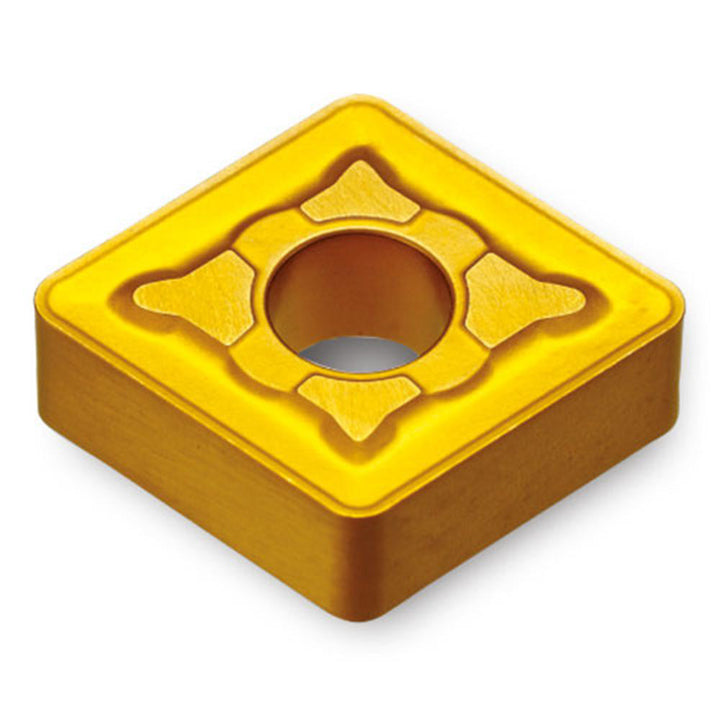

CNMG120408ET TT9225 Carbide Insert, Grade TT9225, Al2O3 - Ingersoll Cutting Tools 5519801
MFR# 5519801ISO/ANSI# CNMG120408ET TT9225Series CNMG
$15.67List $20.10
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT9225
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 5519801 is a CNMG120408ET TT9225 carbide indexable insert, grade TT9225, Al2O3 coated. Suited for stainless steel, superalloy, titanium.
Specifications
Chip breakerET
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408ET TT9225
Manufacturer gradeTT9225
Maximum depth of cut0.2170
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in1/2
Wiper edgeNo
