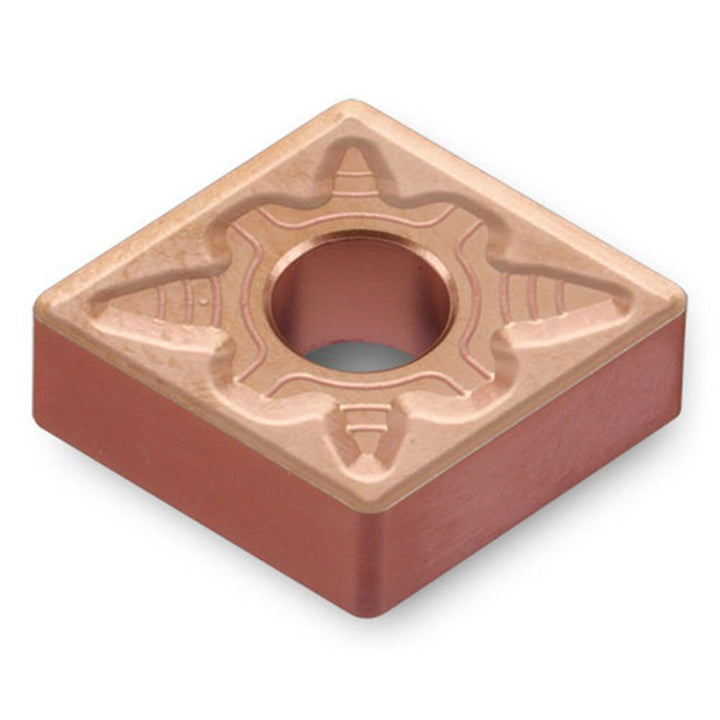

CNMG120408EM TT9225 Solid Carbide Insert, Grade TT9225, TiCN - Ingersoll Cutting Tools 5519842
MFR# 5519842ISO/ANSI# CNMG120408EM TT9225Series CNMG
$15.95List $20.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT9225
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5519842 is a CNMG120408EM TT9225 solid carbide indexable insert, grade TT9225, TiCN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeCNMG432EMTT9225
Chip breakerEM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408EM TT9225
Manufacturer gradeTT9225
Maximum depth of cut0.2000
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in1/2
Wiper edgeNo
