Ingersoll Cutting Tools

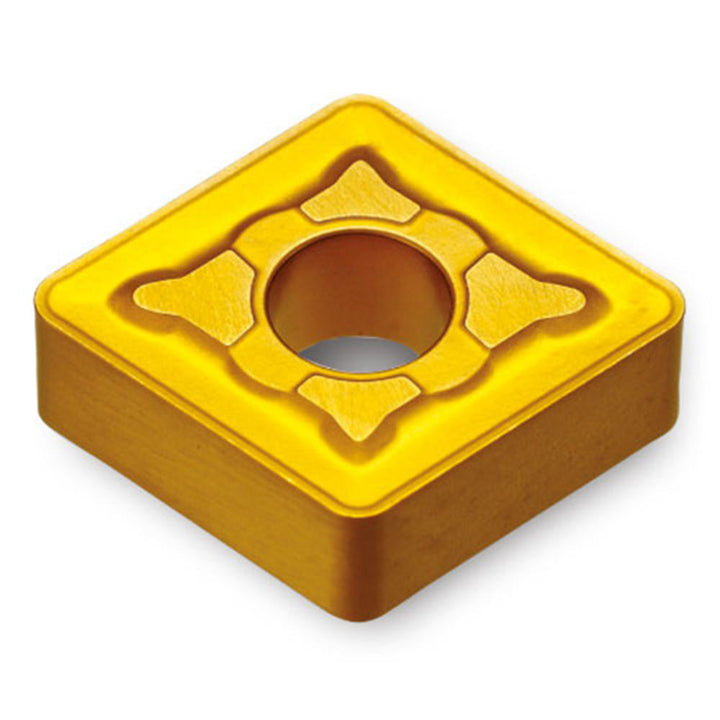

CNMG120408ET TT9215 Solid Carbide Insert, Grade TT9215, TiCN - Ingersoll Cutting Tools 5520432
MFR# 5520432ISO/ANSI# CNMG120408ET TT9215Series CNMG
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT9215
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5520432 is a CNMG120408ET TT9215 solid carbide indexable insert, grade TT9215, TiCN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeCNMG432ETTT9215
Chip breakerET
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408ET TT9215
Manufacturer gradeTT9215
Maximum depth of cut0.2170
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in1/2
Wiper edgeNo
