Ingersoll Cutting Tools

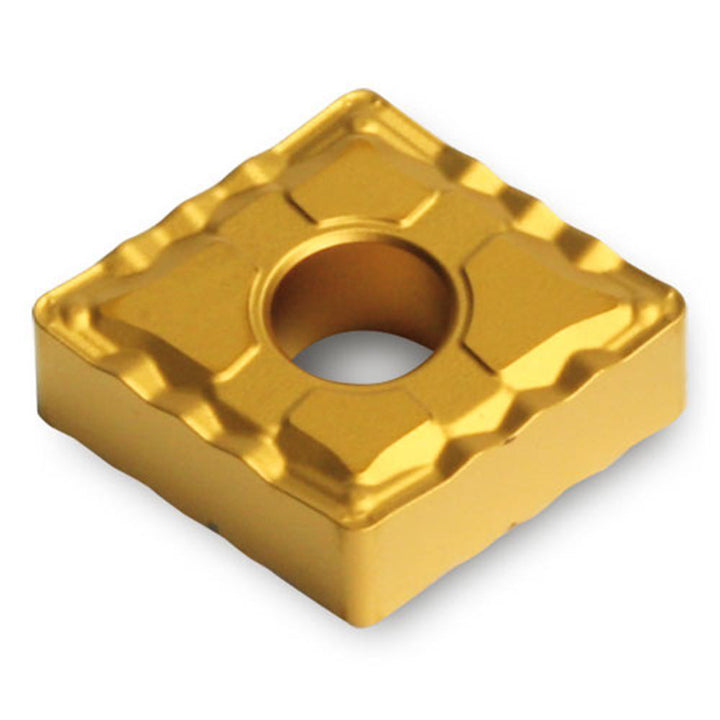

CNMG120404FC TT9215 Carbide Insert, Grade TT9215, Al2O3 - Ingersoll Cutting Tools 5520471
MFR# 5520471ISO/ANSI# CNMG120404Series CNMG
$15.95List $20.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT9215
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 5520471 is a CNMG120404FC TT9215 carbide indexable insert, grade TT9215, Al2O3 coated. Suited for stainless steel, superalloy, titanium.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerFC
Chip breaker operationFinishing
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0160
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120404FC TT9215
Iso insert codeCNMG120404
Iso size code120404
Manufacturer gradeTT9215
Maximum depth of cut0.0590
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in1
Wiper edgeNo
