Ingersoll Cutting Tools

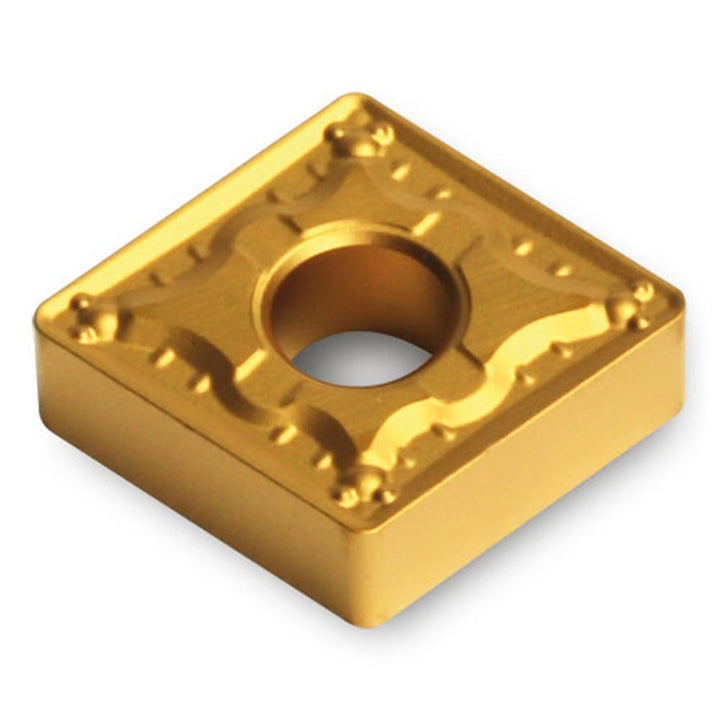

CNMG120404PC TT9215 Solid Carbide Insert, Grade TT9215, TiCN - Ingersoll Cutting Tools 5520473
MFR# 5520473ISO/ANSI# CNMG120404PC TT9215Series CNMG
$15.95List $20.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT9215
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5520473 is a CNMG120404PC TT9215 solid carbide indexable insert, grade TT9215, TiCN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeCNMG431PCTT9215
Chip breakerPC
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0160
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120404PC TT9215
Manufacturer gradeTT9215
Maximum depth of cut0.1960
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
