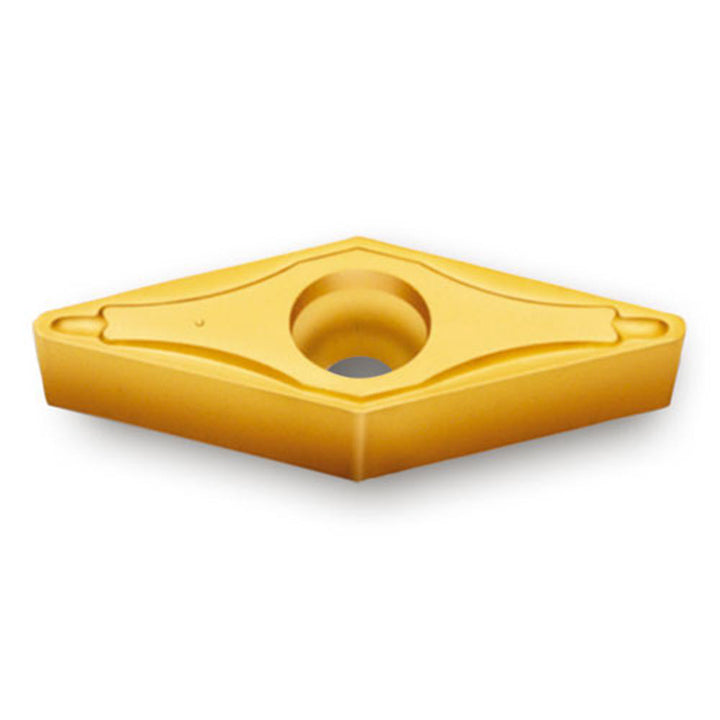

VBMT160404FG TT9225 Carbide Insert, Grade TT9225, Al2O3 - Ingersoll Cutting Tools 5520513

Ingersoll Cutting Tools

VBMT160404FG TT9225 Carbide Insert, Grade TT9225, Al2O3 - Ingersoll Cutting Tools 5520513

MFR# 5520513ISO/ANSI# VBMT160404Series VBMT

$24.63List $31.05 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTT9225
MaterialCarbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 5520513 is a VBMT160404FG TT9225 carbide indexable insert, grade TT9225, Al2O3 coated. Suited for stainless steel, superalloy, titanium.

Specifications

Ansi insert codeVBMT331
Ansi size code331
Chip breakerFG
Chip breaker operationFinishing
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius0.0160
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404FG TT9225
Iso insert codeVBMT160404
Iso size code160404
Manufacturer gradeTT9225
Maximum depth of cut0.0590
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle5
Side clearancePositive
Tolerance codeM
Wiper edgeNo
