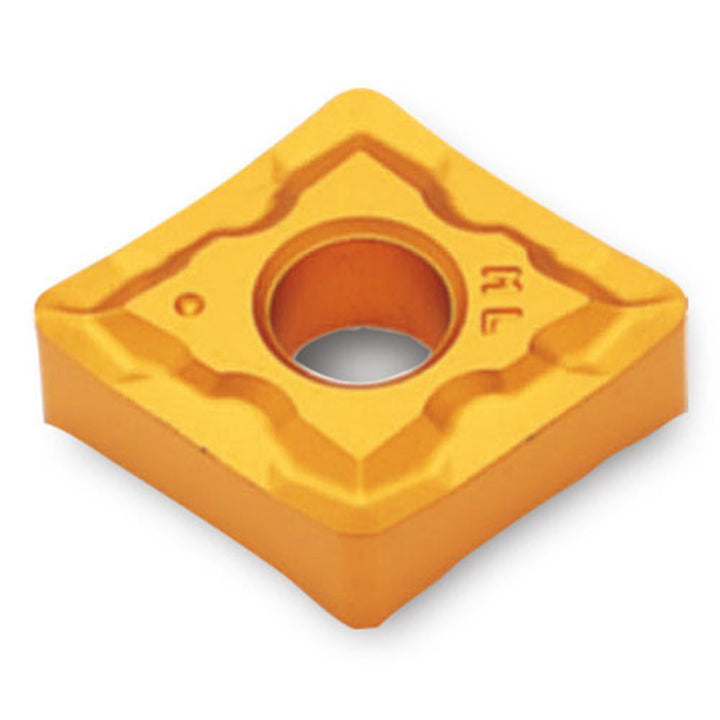

CNMG120408ML TT9225 Solid Carbide Insert, Grade TT9225, TiCN - Ingersoll Cutting Tools 5520806

MFR# 5520806ISO/ANSI# CNMG120408ML TT9225Series CNMG

$15.95List $20.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT9225
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5520806 is a CNMG120408ML TT9225 solid carbide indexable insert, grade TT9225, TiCN coated. Suited for stainless steel, super-alloys & titanium.

Specifications

Ansi codeCNMG432MLTT9225
Chip breakerML
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408ML TT9225
Manufacturer gradeTT9225
Maximum depth of cut0.1380
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
StandardsISO
Tolerance codeM
Width in1
Wiper edgeNo
