CCGT09T304SA TT9020 Solid Carbide Insert, Grade TT9020, TiCN - Ingersoll Cutting Tools 5520886

Ingersoll Cutting Tools

CCGT09T304SA TT9020 Solid Carbide Insert, Grade TT9020, TiCN - Ingersoll Cutting Tools 5520886

MFR# 5520886ISO/ANSI# CCGT09T304SA TT9020Series CCGT

$24.60List $31.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT9020
MaterialSolid Carbide
CoatingTiCN

Description

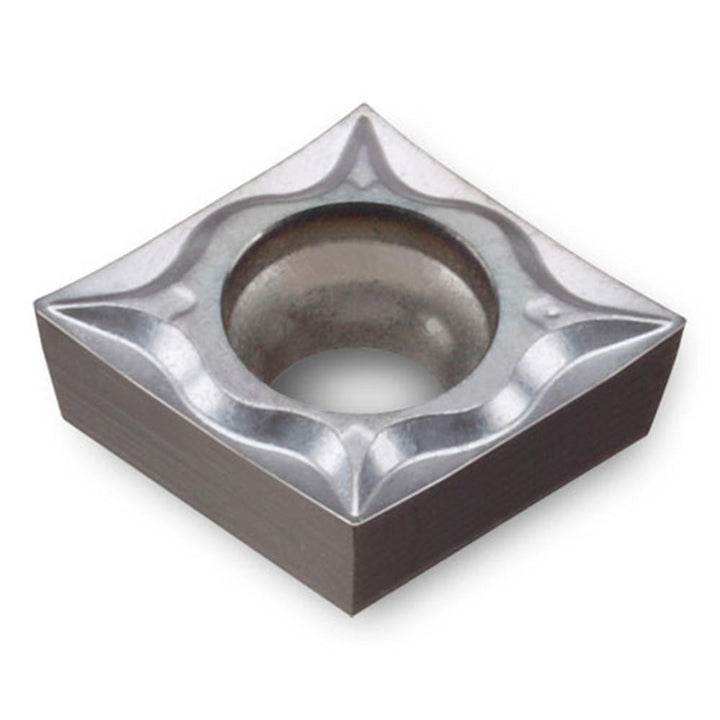

The Ingersoll Cutting Tools 5520886 is a CCGT09T304SA TT9020 solid carbide indexable insert, grade TT9020, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi codeCCGT32.51SATT9020
Chip breakerSA
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T304SA TT9020
Manufacturer gradeTT9020
Maximum depth of cut0.1000
Number of cutting edges2
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO
Tolerance codeG
Wiper edgeNo
