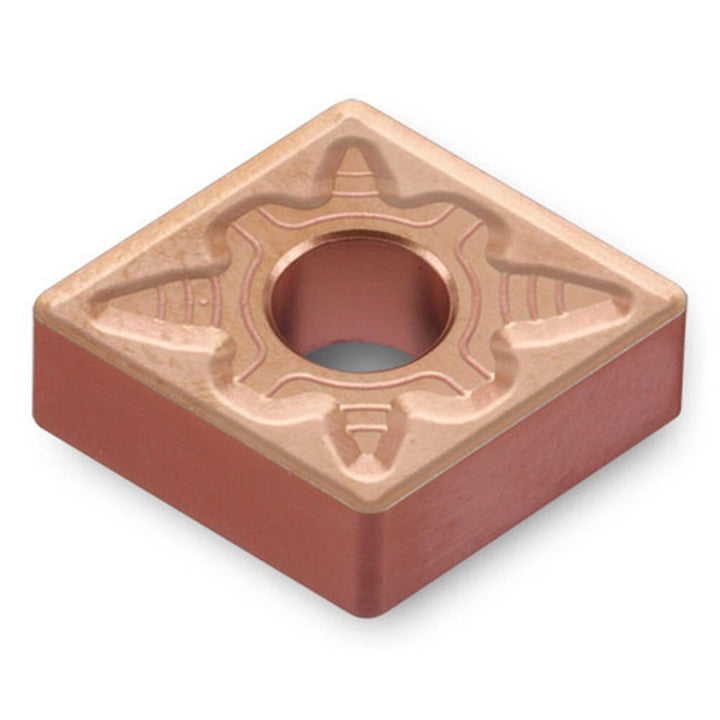

CNMG160608EM TT9215 Solid Carbide Insert, Grade TT9215, TiCN - Ingersoll Cutting Tools 5521726
MFR# 5521726ISO/ANSI# CNMG160608EM TT9215Series CNMG
$27.66List $34.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeTT9215
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5521726 is a CNMG160608EM TT9215 solid carbide indexable insert, grade TT9215, TiCN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeCNMG542EMTT9215
Chip breakerEM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Included angle80.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6350
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608EM TT9215
Manufacturer gradeTT9215
Maximum depth of cut0.2500
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
