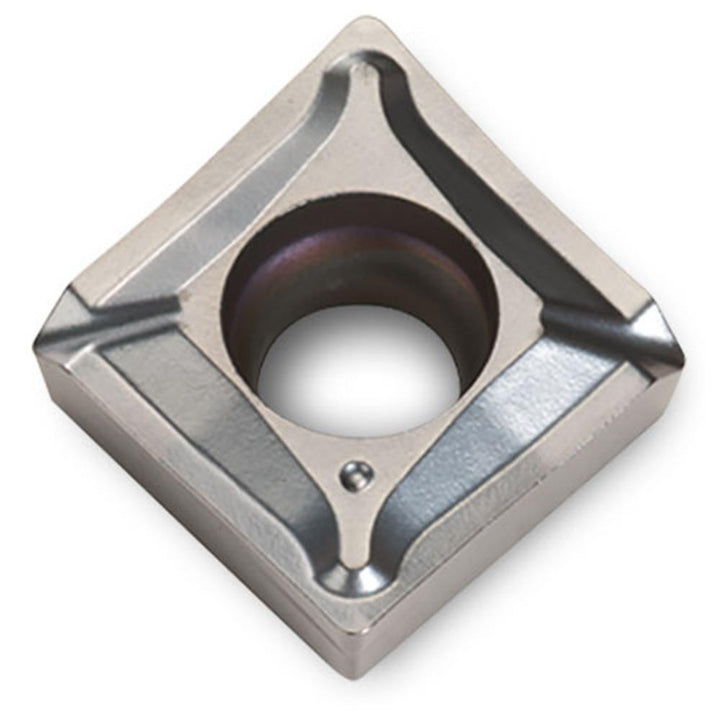

XCMT080304TC TT9080 Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5521777

Ingersoll Cutting Tools

XCMT080304TC TT9080 Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5521777

MFR# 5521777ISO/ANSI# XCMT080304TC TT9080Series XCMT

$21.87List $26.60 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTT9080
MaterialCarbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 5521777 is a XCMT080304TC TT9080 carbide indexable insert, grade TT9080, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeXCMT080304TC TT9080
ChipbreakerTC
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Included angle degree83.5
Inscribed circle0.3310
Insert materialCarbide
Insert size code080304
Insert styleXCMT
Iso codeXCMT080304TC TT9080
Length0.33
Manufacturer gradeTT9080
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
ShapeDiamond
Thickness0.125
