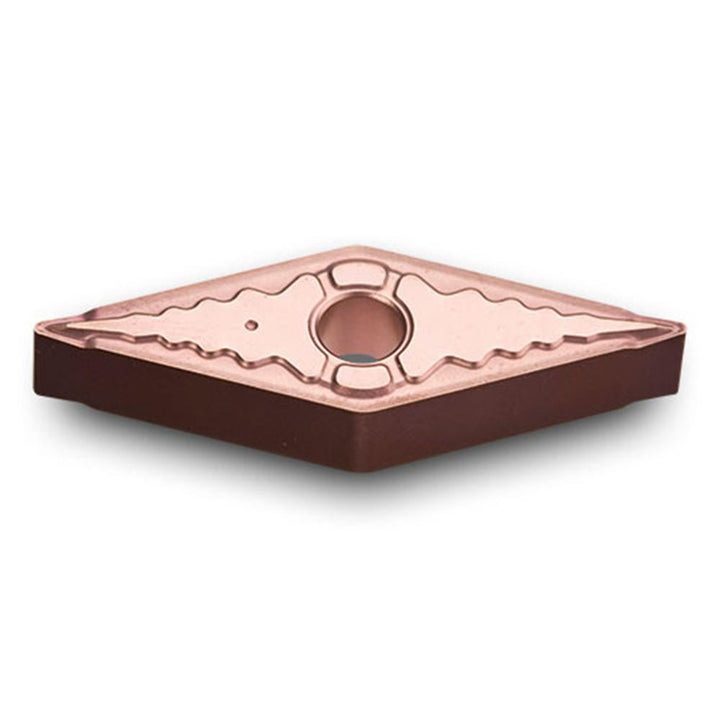

VNMG160408EA TT9215 Carbide Insert, Grade TT9215, Al2O3 - Ingersoll Cutting Tools 5521960
MFR# 5521960ISO/ANSI# VNMG160408EA TT9215Series VNMG
$24.76List $31.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT9215
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 5521960 is a VNMG160408EA TT9215 carbide indexable insert, grade TT9215, Al2O3 coated. Suited for stainless steel, superalloy, titanium.
Specifications
Chip breakerEA
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness0.1870
Iso codeVNMG160408EA TT9215
Manufacturer gradeTT9215
Maximum depth of cut0.0980
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Tolerance codeM
Wiper edgeNo
