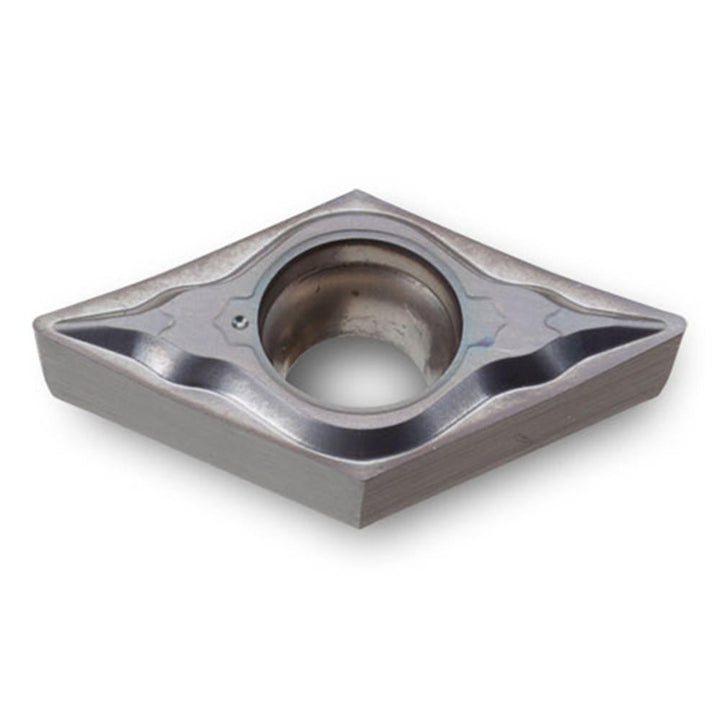

DCGT11T302SA TT9080 Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5522297

Ingersoll Cutting Tools

DCGT11T302SA TT9080 Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5522297

MFR# 5522297ISO/ANSI# DCGT11T302SA TT9080Series DCGT

$26.74List $33.70 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT9080
MaterialCarbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 5522297 is a DCGT11T302SA TT9080 carbide indexable insert, grade TT9080, AlTiN coated. Suited for steel, stainless steel, superalloy, titanium.

Specifications

Chip breakerSA
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Hole diameter0.1730
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4570
Insert materialCarbide
Insert shapeDiamond
Insert size code32.50.5
Insert styleDCGT
Insert thickness0.1560
Iso codeDCGT11T302SA TT9080
Manufacturer gradeTT9080
Maximum depth of cut0.1000
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Tolerance codeG
Wiper edgeNo
