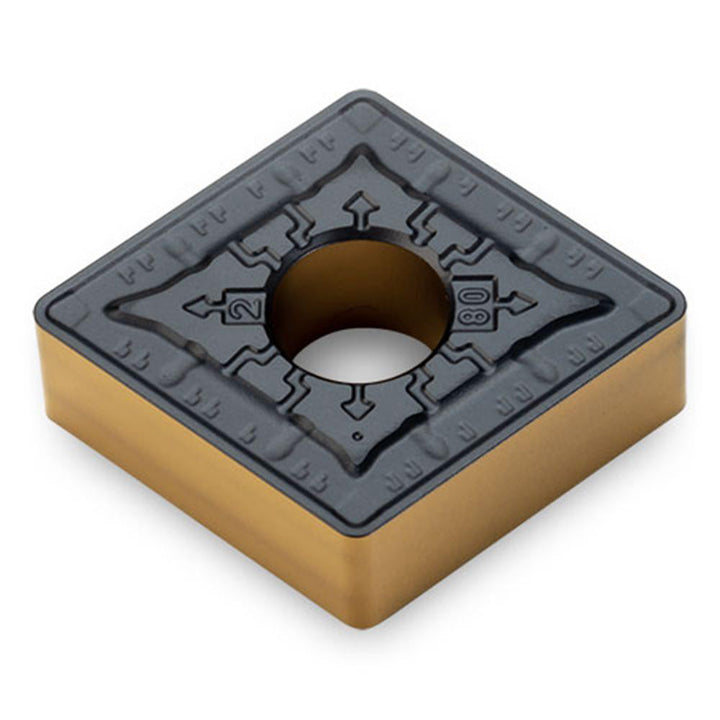

CNMG120408RGP TT8115B Carbide Insert, Grade TT8115B, Al2O3 - Ingersoll Cutting Tools 5522322
MFR# 5522322ISO/ANSI# CNMG120408RGP TT8115BSeries CNMG
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT8115B
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 5522322 is a CNMG120408RGP TT8115B carbide indexable insert, grade TT8115B, Al2O3 coated. Suited for steel.
Specifications
Chip breakerRGP
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408RGP TT8115B
Manufacturer gradeTT8115B
Maximum depth of cut0.2360
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
