Ingersoll Cutting Tools

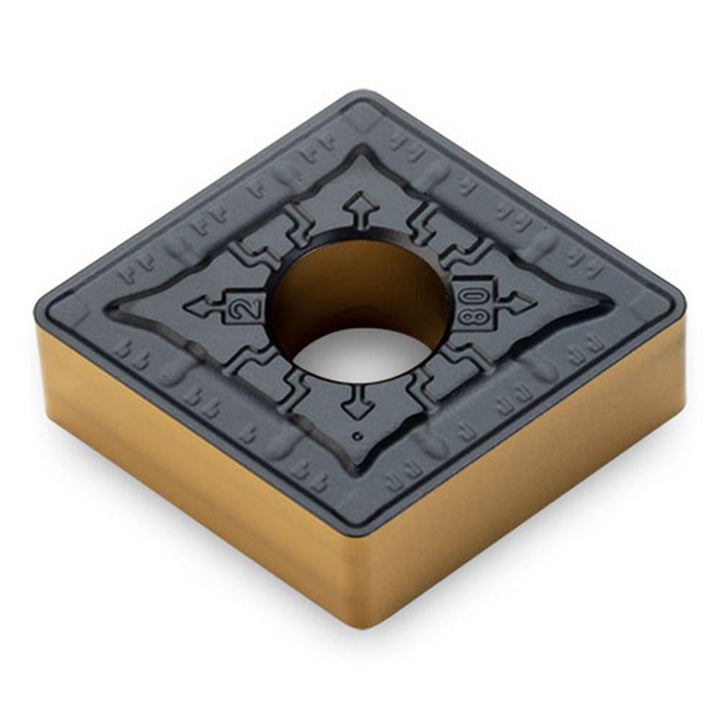

CNMG120412RGP TT8125B Solid Carbide Insert, Grade TT8125B, TiCN - Ingersoll Cutting Tools 5522325
MFR# 5522325ISO/ANSI# CNMG120412RGP TT8125BSeries CNMG
$15.95List $20.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT8125B
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5522325 is a CNMG120412RGP TT8125B solid carbide indexable insert, grade TT8125B, TiCN coated. Suited for steel.
Specifications
Ansi codeCNMG433RGPTT8125B
Chip breakerRGP
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0470
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120412RGP TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.2360
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
