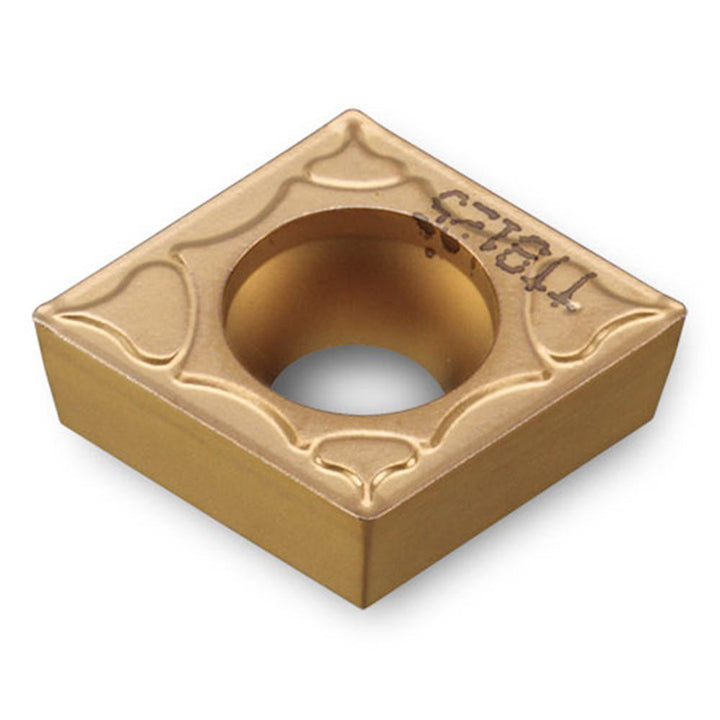

CCMT060208PC TT9080 Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5522836
MFR# 5522836ISO/ANSI# CCMT060208PC TT9080Series CCMT
$13.29List $16.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTT9080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5522836 is a CCMT060208PC TT9080 carbide indexable insert, grade TT9080, AlTiN coated. Suited for steel, stainless steel, superalloy, titanium.
Specifications
Chip breakerPC
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond
Insert size code21.52
Insert styleCCMT
Insert thickness0.0940
Iso codeCCMT060208PC TT9080
Manufacturer gradeTT9080
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Tolerance codeM
Width in1/4
Wiper edgeNo
