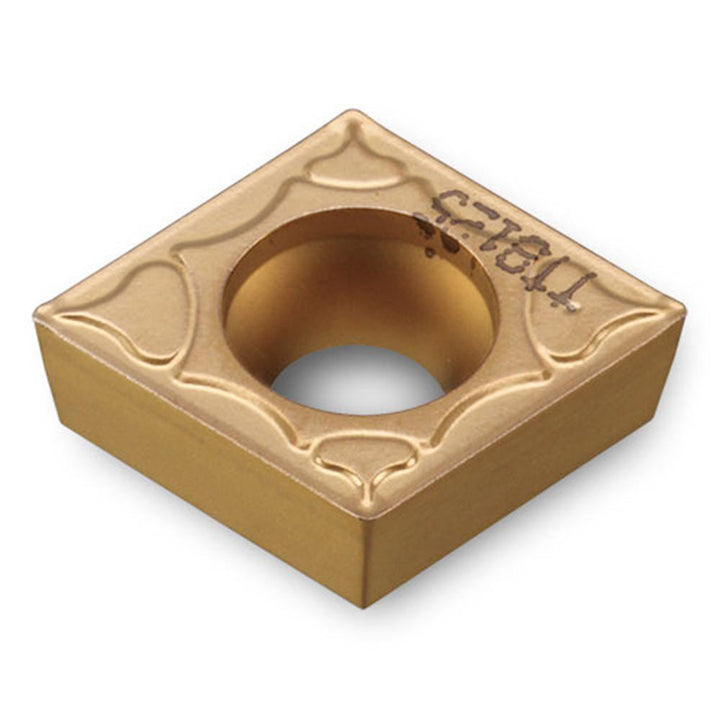

CCMT09T304PC TT9080 Solid Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5522837

Ingersoll Cutting Tools

CCMT09T304PC TT9080 Solid Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5522837

MFR# 5522837ISO/ANSI# CCMT09T304PC TT9080Series CCMT

$15.27List $19.25 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT9080
MaterialSolid Carbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 5522837 is a CCMT09T304PC TT9080 solid carbide indexable insert, grade TT9080, AlTiN coated. Suited for stainless steel, steel, super-alloys & titanium.

Specifications

Ansi codeCCMT32.51PCTT9080
Chip breakerPC
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304PC TT9080
Manufacturer gradeTT9080
Maximum depth of cut0.1180
Number of cutting edges2
Primary workpiece materialStainless Steel; Steel; Super-alloys & Titanium
RakePositive
Relief angle7
StandardsISO
Tolerance codeM
Wiper edgeNo
