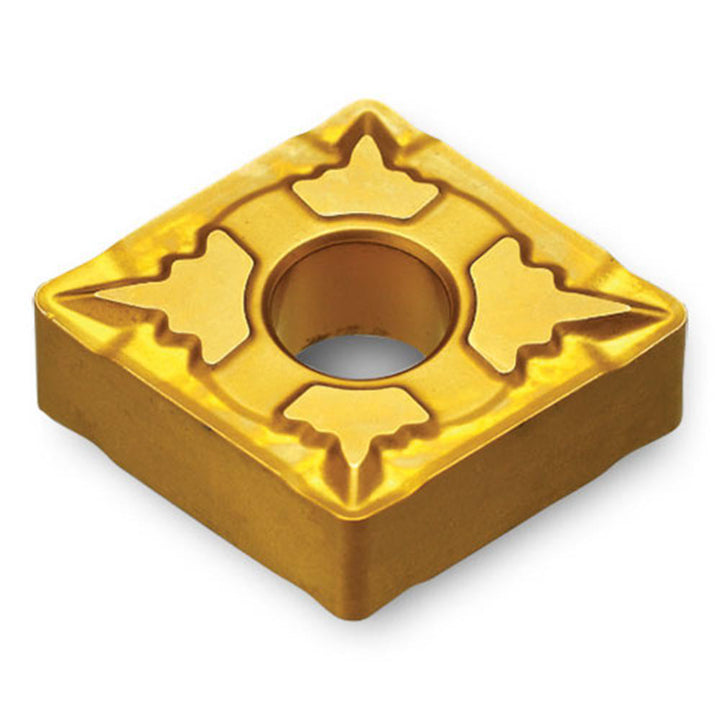

CNMG120408EA TT9080 Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5522842

MFR# 5522842ISO/ANSI# CNMG120408Series CNMG

$15.95List $20.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT9080
MaterialCarbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 5522842 is a CNMG120408EA TT9080 carbide indexable insert, grade TT9080, AlTiN coated. Suited for steel, stainless steel, superalloy, titanium.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerEA
Chip breaker operationFinishing
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408EA TT9080
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeTT9080
Maximum depth of cut0.0600
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in1
Wiper edgeNo
