Ingersoll Cutting Tools
CNMG120412EM TT9080 Solid Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5522845
MFR# 5522845ISO/ANSI# CNMG120412EM TT9080Series CNMG
$15.67List $20.10
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT9080
MaterialSolid Carbide
CoatingAlTiN
Description

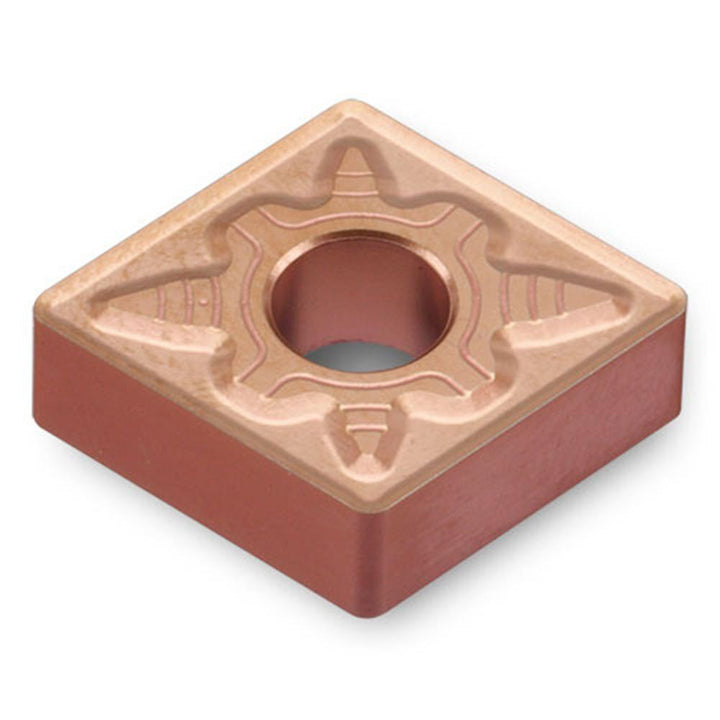

The Ingersoll Cutting Tools 5522845 is a CNMG120412EM TT9080 solid carbide indexable insert, grade TT9080, AlTiN coated. Suited for stainless steel, steel, super-alloys & titanium.
Specifications
Ansi codeCNMG433EMTT9080
Chip breakerEM
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412EM TT9080
Manufacturer gradeTT9080
Maximum depth of cut0.2000
Number of cutting edges4
Primary workpiece materialStainless Steel; Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
StandardsISO
Tolerance codeM
Width in1
Wiper edgeNo
