DCMT11T304PC TT9080 Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5522849

Ingersoll Cutting Tools

DCMT11T304PC TT9080 Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5522849

MFR# 5522849ISO/ANSI# DCMT11T304PC TT9080Series DCMT

$18.83List $24.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT9080
MaterialCarbide
CoatingAlTiN

Description

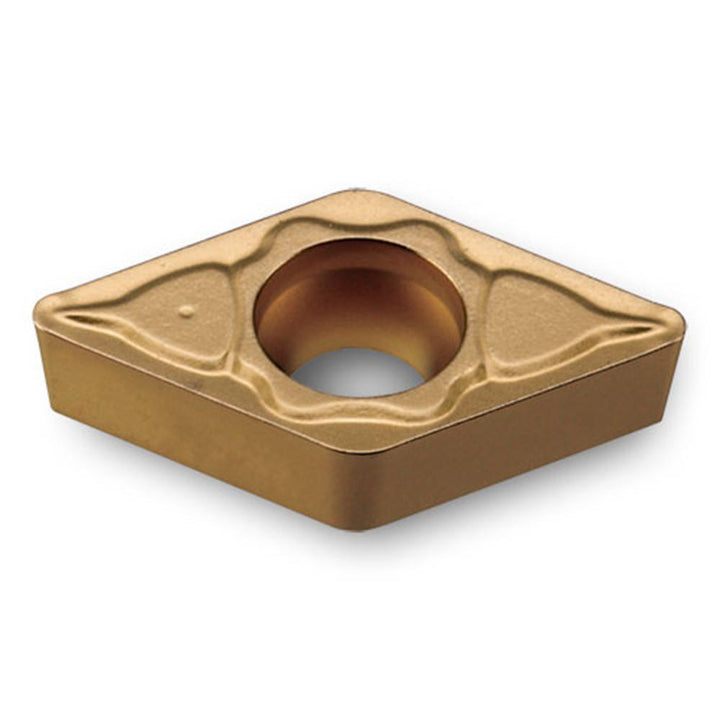

The Ingersoll Cutting Tools 5522849 is a DCMT11T304PC TT9080 carbide indexable insert, grade TT9080, AlTiN coated. Suited for steel, stainless steel, superalloy, titanium.

Specifications

Chip breakerPC
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Hole diameter0.1730
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4570
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMT
Insert thickness0.1560
Iso codeDCMT11T304PC TT9080
Manufacturer gradeTT9080
Maximum depth of cut0.1180
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Tolerance codeM
Wiper edgeNo
