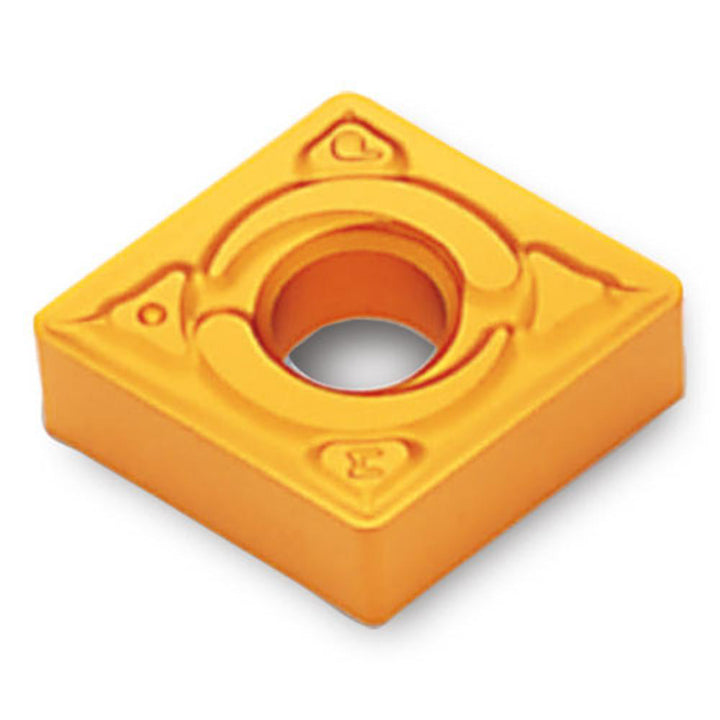

CNMG120408MP TT9080 Solid Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5522910

Ingersoll Cutting Tools

CNMG120408MP TT9080 Solid Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 5522910

MFR# 5522910ISO/ANSI# CNMG120408MP TT9080Series CNMG

$15.95List $20.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT9080
MaterialSolid Carbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 5522910 is a CNMG120408MP TT9080 solid carbide indexable insert, grade TT9080, AlTiN coated. Suited for steel, stainless steel, super-alloys & titanium.

Specifications

Ansi codeCNMG432MPTT9080
Chip breakerMP
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408MP TT9080
Manufacturer gradeTT9080
Maximum depth of cut0.1570
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
