Ingersoll Cutting Tools

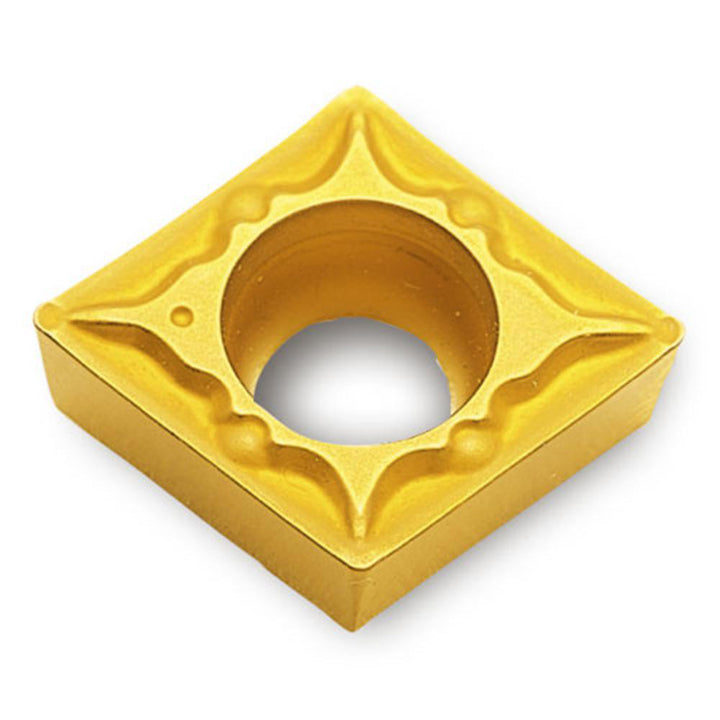

CCMT060204FG TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523025
MFR# 5523025ISO/ANSI# CCMT060204FG TT5080Series CCMT
$13.06List $16.75
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523025 is a CCMT060204FG TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Chip breakerFG
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness0.0940
Iso codeCCMT060204FG TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0600
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Tolerance codeM
Width in1/4
Wiper edgeNo
