Ingersoll Cutting Tools

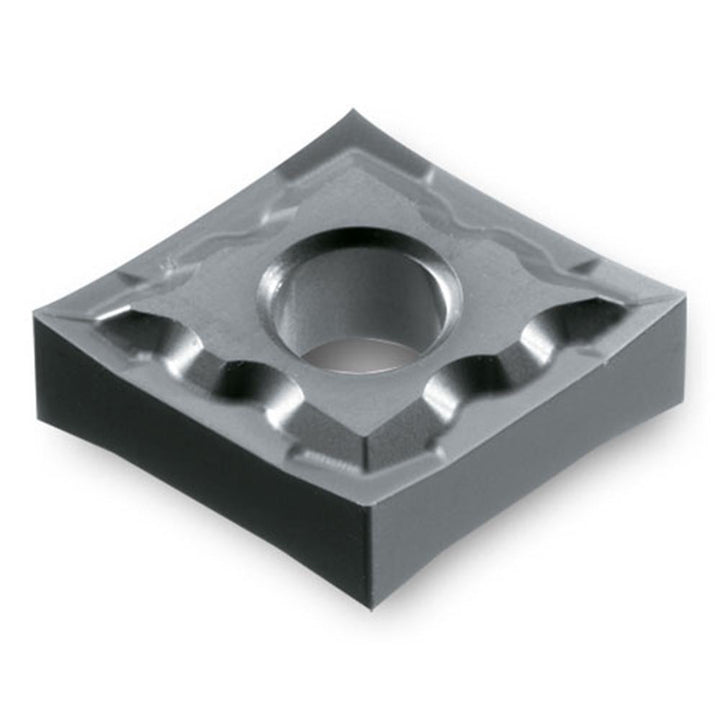

CNGG120408ML TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523097
MFR# 5523097ISO/ANSI# CNGG120408Series CNGG
$22.96List $29.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523097 is a CNGG120408ML TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Ansi insert codeCNGG432
Ansi size code432
Chip breakerML
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120408ML TT5080
Iso insert codeCNGG120408
Iso size code120408
Manufacturer gradeTT5080
Maximum depth of cut0.1380
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Side clearanceNegative
StandardsISO
Tolerance codeG
Width in1
Wiper edgeNo
