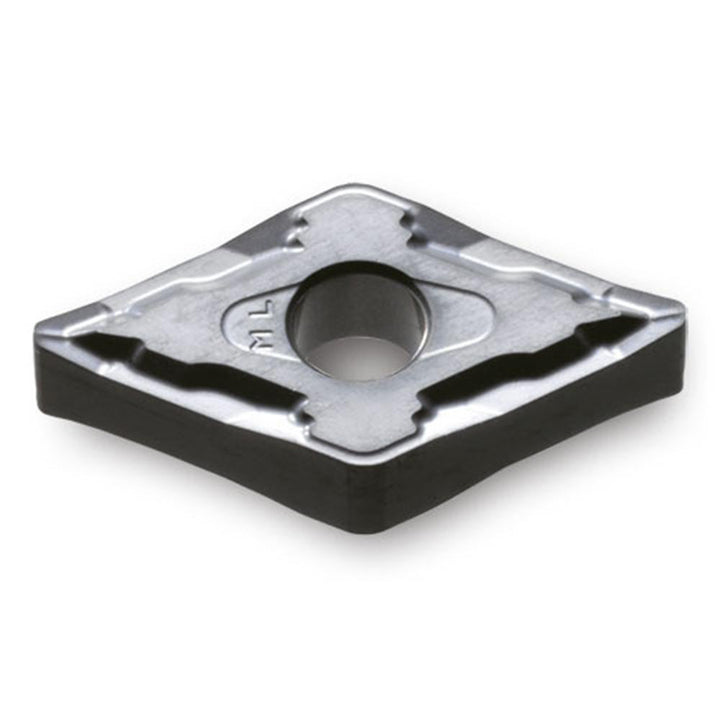

DNGG150408ML TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523114
MFR# 5523114ISO/ANSI# DNGG150408ML TT5080Series DNGG
$26.54List $33.45
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523114 is a DNGG150408ML TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Chip breakerML
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.6100
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNGG
Insert thickness0.1870
Iso codeDNGG150408ML TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.1380
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Tolerance codeG
Width in1/2
Wiper edgeNo
