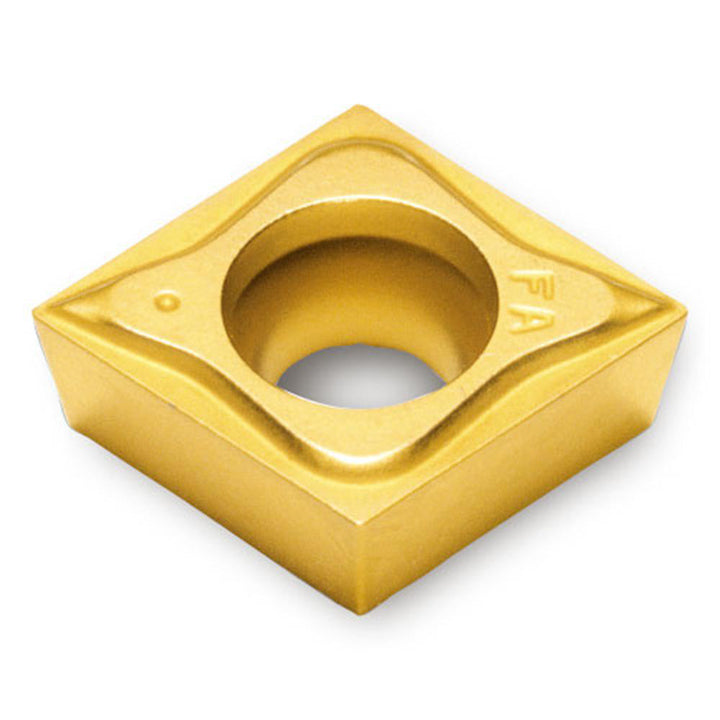

CCMT060204FA TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523125

Ingersoll Cutting Tools

CCMT060204FA TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523125

MFR# 5523125ISO/ANSI# CCMT060204Series CCMT

$13.29List $16.75 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT5080
MaterialCarbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 5523125 is a CCMT060204FA TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.

Specifications

Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerFA
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness0.0940
Iso codeCCMT060204FA TT5080
Iso insert codeCCMT060204
Iso size code060204
Manufacturer gradeTT5080
Maximum depth of cut0.0590
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
