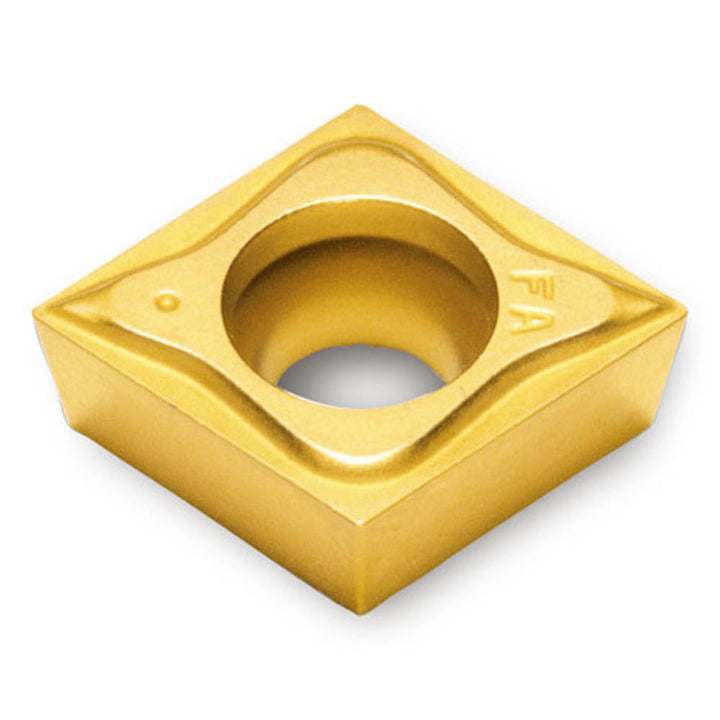

CCMT09T308FA TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523130

Ingersoll Cutting Tools

CCMT09T308FA TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523130

MFR# 5523130ISO/ANSI# CCMT09T308Series CCMT

$15.27List $19.25 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT5080
MaterialCarbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 5523130 is a CCMT09T308FA TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.

Specifications

Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerFA
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308FA TT5080
Iso insert codeCCMT09T308
Iso size code09T308
Manufacturer gradeTT5080
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsISO
Tolerance codeM
Wiper edgeNo
