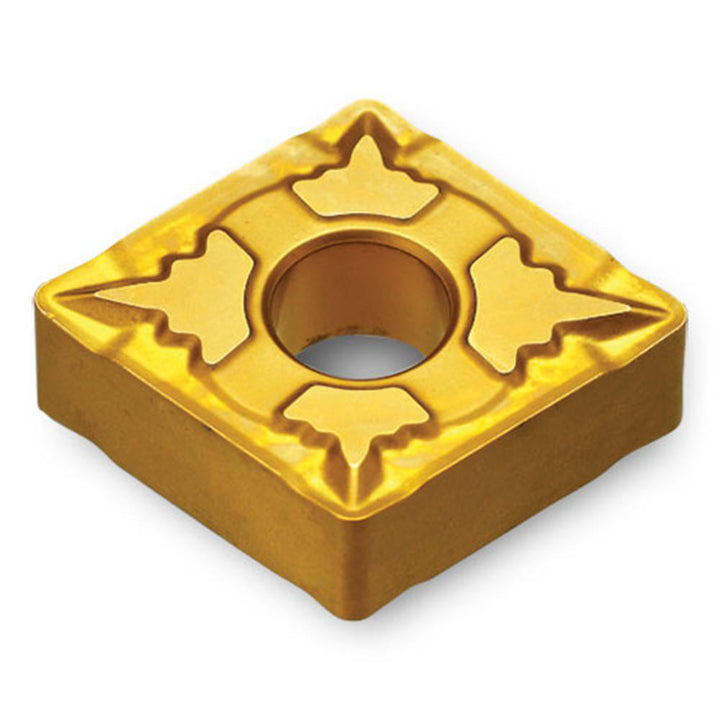

CNMG120404EA TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523131

Ingersoll Cutting Tools

CNMG120404EA TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523131

MFR# 5523131ISO/ANSI# CNMG120404EA TT5080Series CNMG

$15.95List $20.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT5080
MaterialSolid Carbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 5523131 is a CNMG120404EA TT5080 solid carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, super-alloys & titanium.

Specifications

Ansi codeCNMG431EATT5080
Chip breakerEA
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120404EA TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0600
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in1/2
Wiper edgeNo
