Ingersoll Cutting Tools

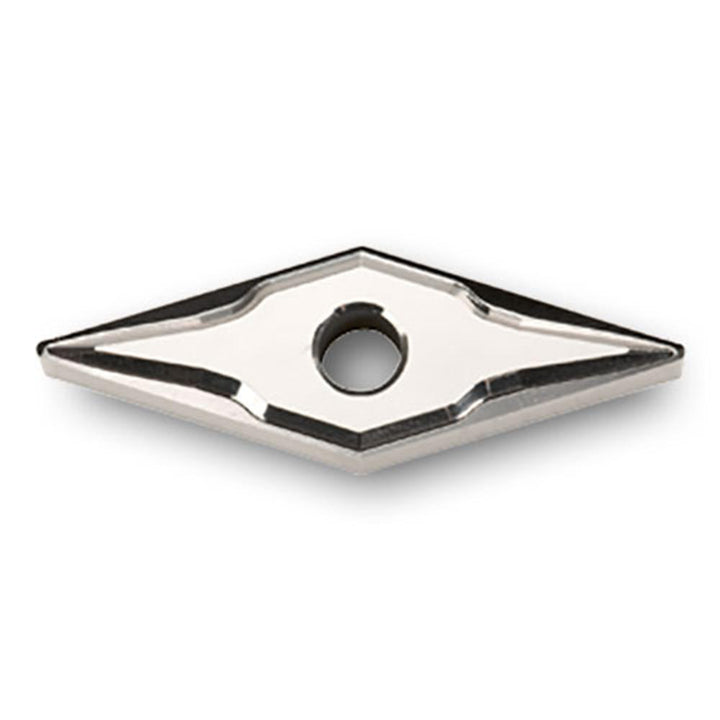

VNGG160404ML TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523135
MFR# 5523135ISO/ANSI# VNGG160404ML TT5080Series VNGG
$32.05List $41.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT5080
MaterialSolid Carbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523135 is a VNGG160404ML TT5080 solid carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeVNGG331MLTT5080
Chip breakerML
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG160404ML TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.1180
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
StandardsISO
Tolerance codeG
Wiper edgeNo
