Ingersoll Cutting Tools

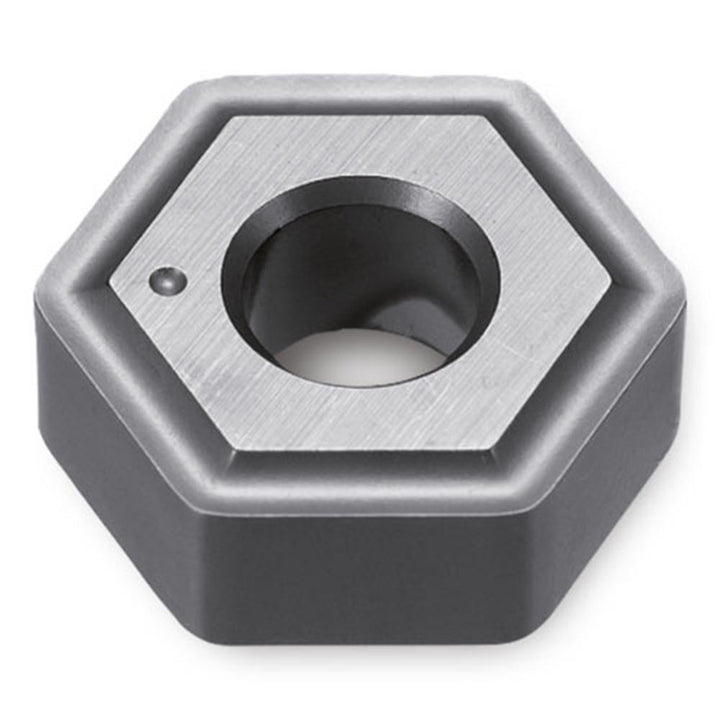

HNMG100612SU TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523140
MFR# 5523140ISO/ANSI# HNMG100612SU TT5080Series HNMG
$41.09List $52.70
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeHexagon
GradeTT5080
MaterialSolid Carbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523140 is a HNMG100612SU TT5080 solid carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeHNMG643SUTT5080
Chip breakerSU
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0470
Included angle120.0
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp
Insert length0.3610
Insert materialSolid Carbide
Insert shapeHexagon
Insert size code643
Insert styleHNMG
Insert thickness in1/4
Iso codeHNMG100612SU TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.2000
Number of cutting edges12
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
