Ingersoll Cutting Tools

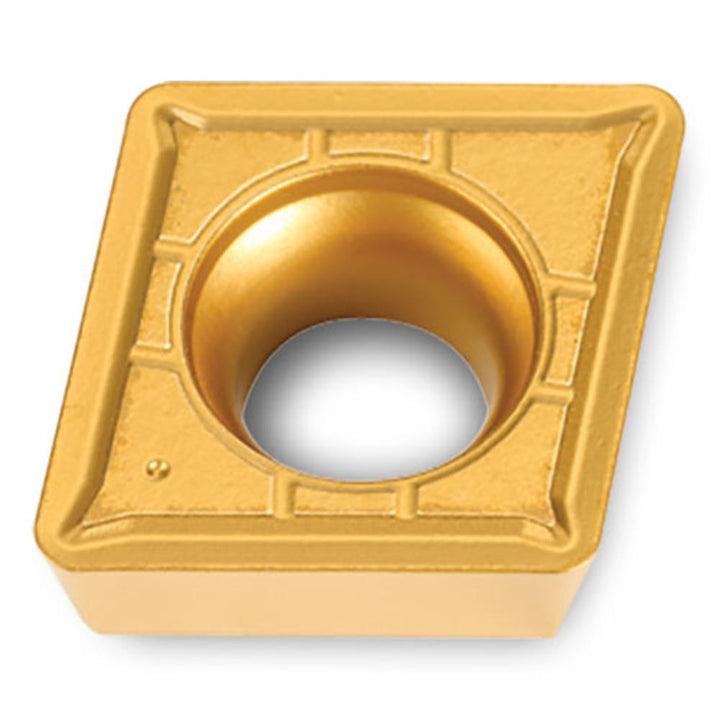

CPMT060208PC TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523146
MFR# 5523146ISO/ANSI# CPMT060208Series CPMT
$13.29List $16.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523146 is a CPMT060208PC TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Ansi insert codeCPMT21.52
Ansi size code21.52
Chip breakerPC
Chip breaker operationFinishing; Medium Machining
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.52
Insert styleCPMT
Insert thickness0.0940
Iso codeCPMT060208PC TT5080
Iso insert codeCPMT060208
Iso size code060208
Manufacturer gradeTT5080
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle11
Side clearancePositive
Tolerance codeM
Width in1/4
Wiper edgeNo
