Ingersoll Cutting Tools

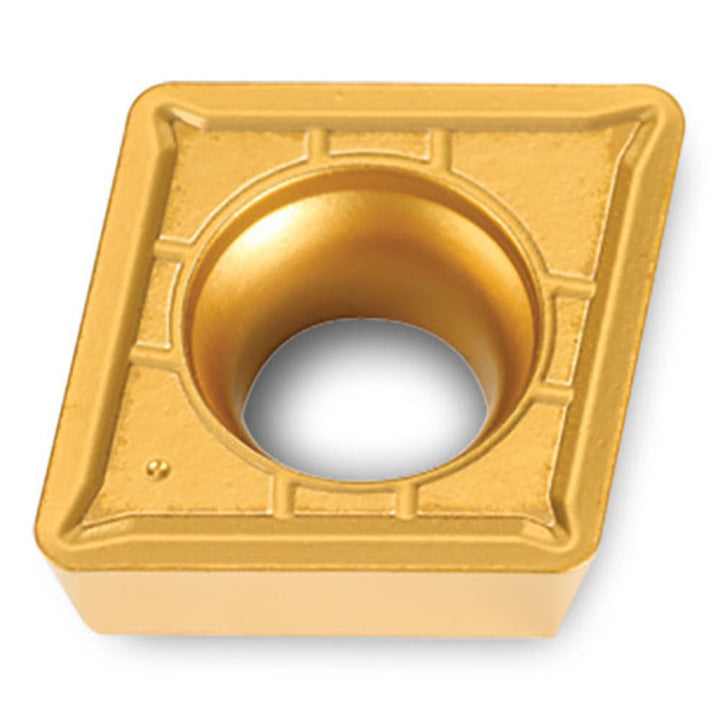

CPMT09T304PC TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523147
MFR# 5523147ISO/ANSI# CPMT09T304PC TT5080Series CPMT
$15.27List $19.25
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT5080
MaterialSolid Carbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523147 is a CPMT09T304PC TT5080 solid carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeCPMT32.51PCTT5080
Chip breakerPC
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleCPMT
Insert thickness0.1560
Iso codeCPMT09T304PC TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.1180
Number of cutting edges2
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakePositive
Relief angle11
Tolerance codeM
Width in3/8
Wiper edgeNo
