Ingersoll Cutting Tools

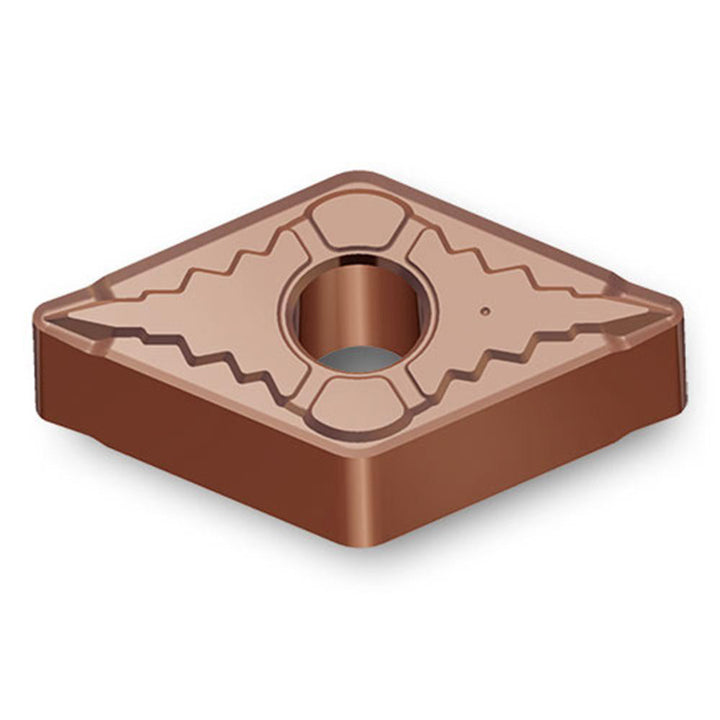

DNMG150408EA TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523176
MFR# 5523176ISO/ANSI# DNMG150408EA TT5080Series DNMG
$21.75List $27.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT5080
MaterialSolid Carbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523176 is a DNMG150408EA TT5080 solid carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeDNMG432EATT5080
Chip breakerEA
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG150408EA TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0590
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
