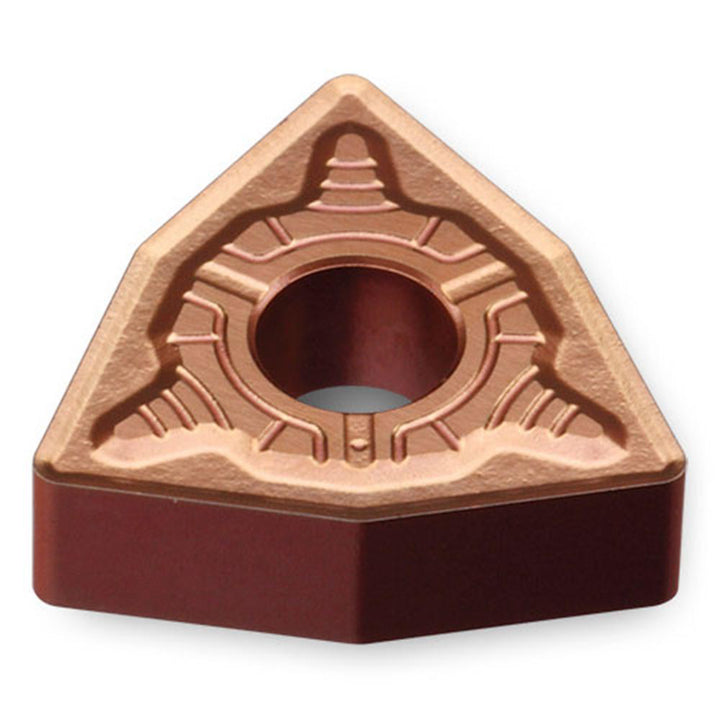

WNMG060408EM TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523193
MFR# 5523193ISO/ANSI# WNMG060408EM TT5080Series WNMG
$13.25List $17.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523193 is a WNMG060408EM TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Chip breakerEM
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.2570
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG060408EM TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.1200
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Tolerance codeM
Wiper edgeNo
