Ingersoll Cutting Tools

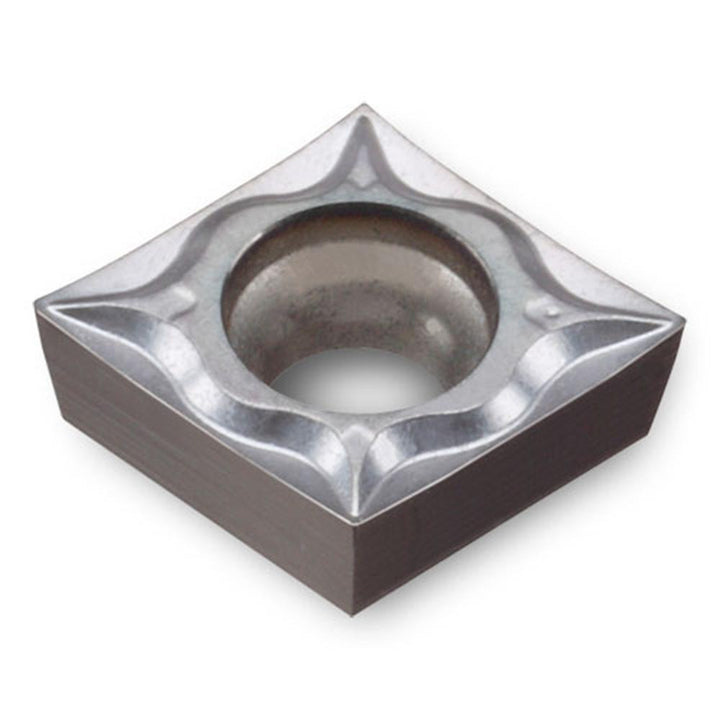

CCGT060202SA TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523202
MFR# 5523202ISO/ANSI# CCGT060202SA TT5080Series CCGT
$22.90List $28.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523202 is a CCGT060202SA TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Chip breakerSA
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202SA TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0600
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
StandardsISO
Tolerance codeG
Wiper edgeNo
