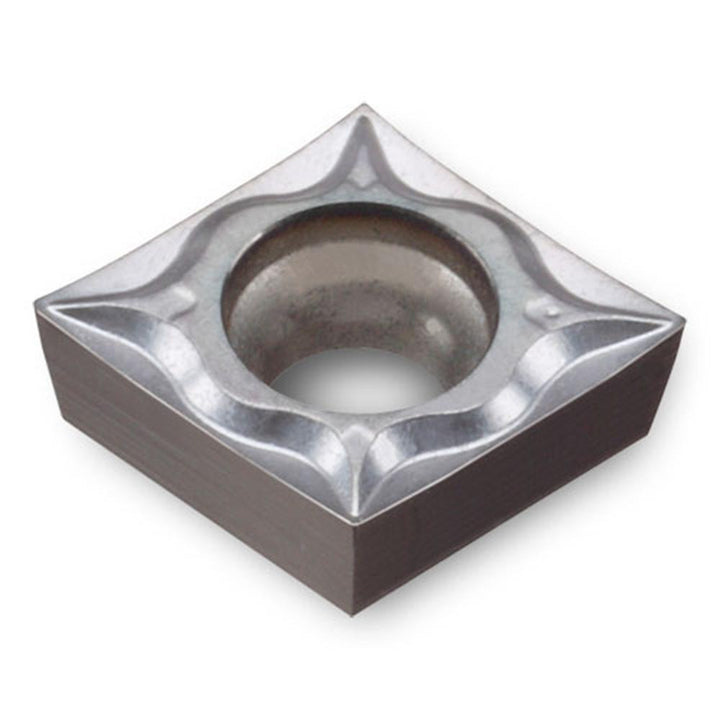

CCGT060204SA TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523203
MFR# 5523203ISO/ANSI# CCGT060204SA TT5080Series CCGT
$22.90List $28.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTT5080
MaterialSolid Carbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523203 is a CCGT060204SA TT5080 solid carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeCCGT21.51SATT5080
Chip breakerSA
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCGT
Insert thickness0.0940
Iso codeCCGT060204SA TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0950
Number of cutting edges2
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakePositive
Relief angle7
Tolerance codeG
Width in1/4
Wiper edgeNo
